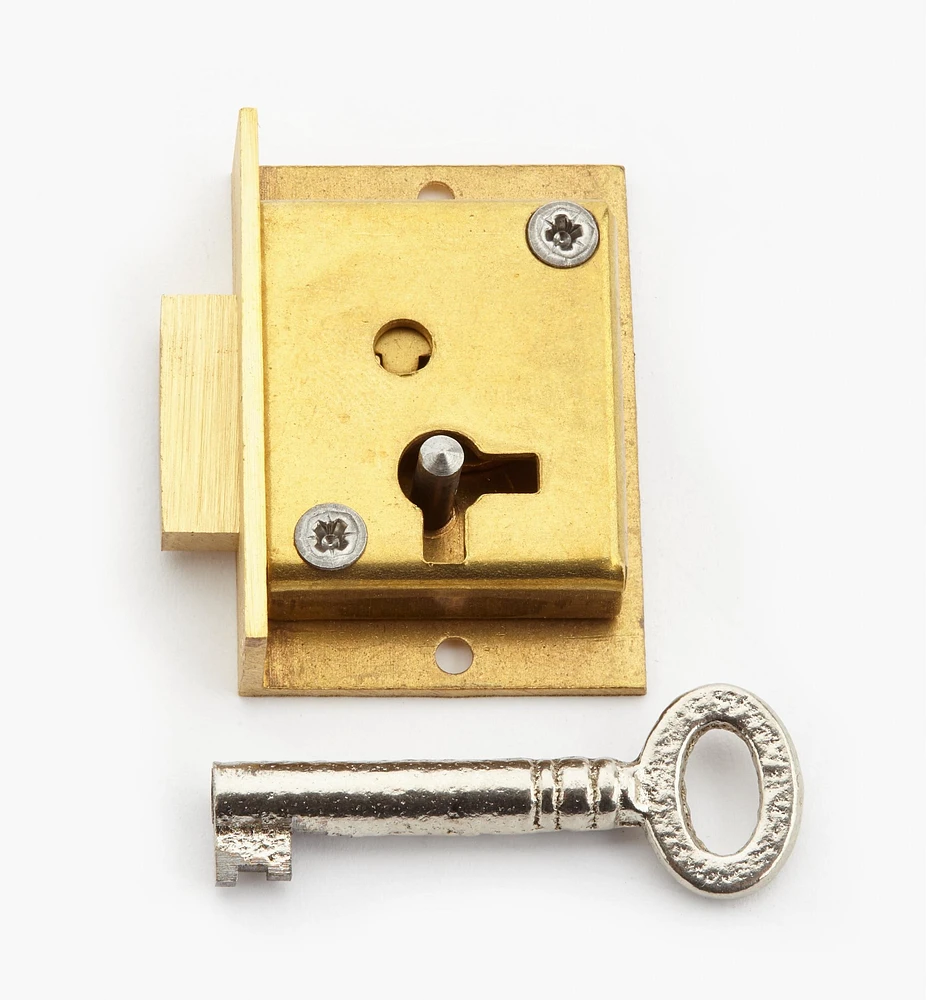

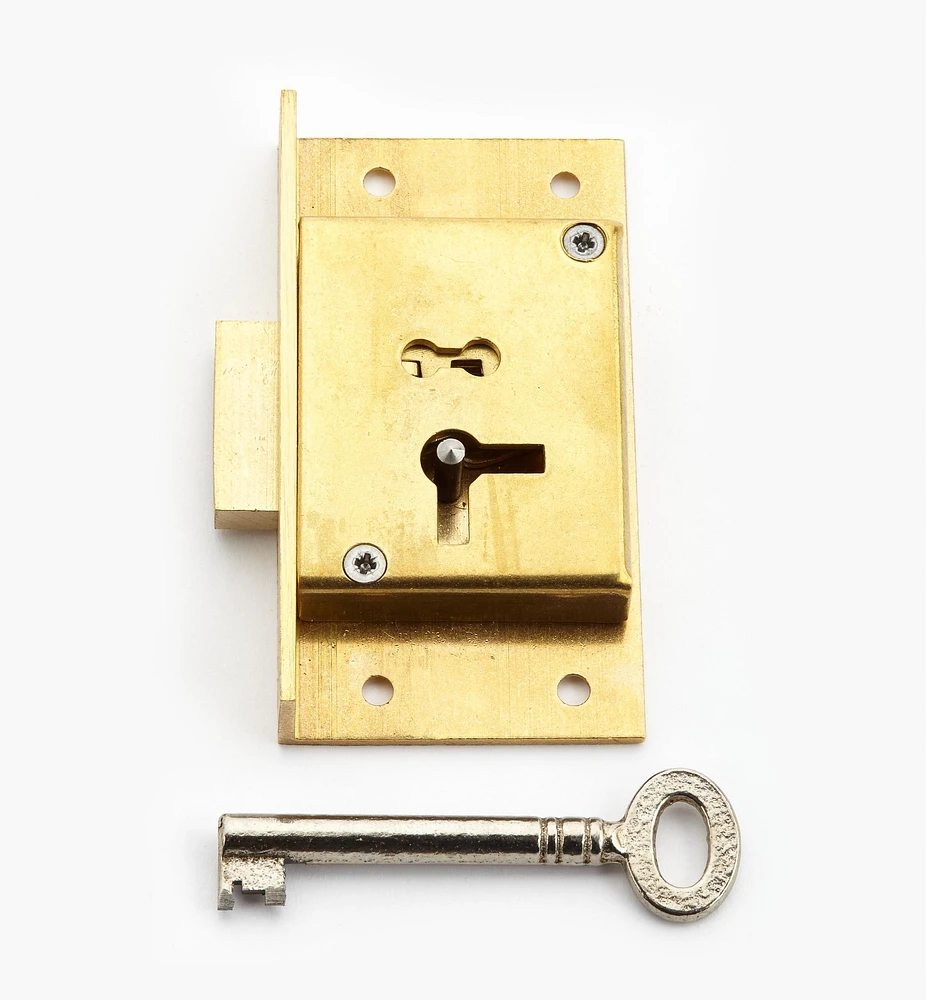

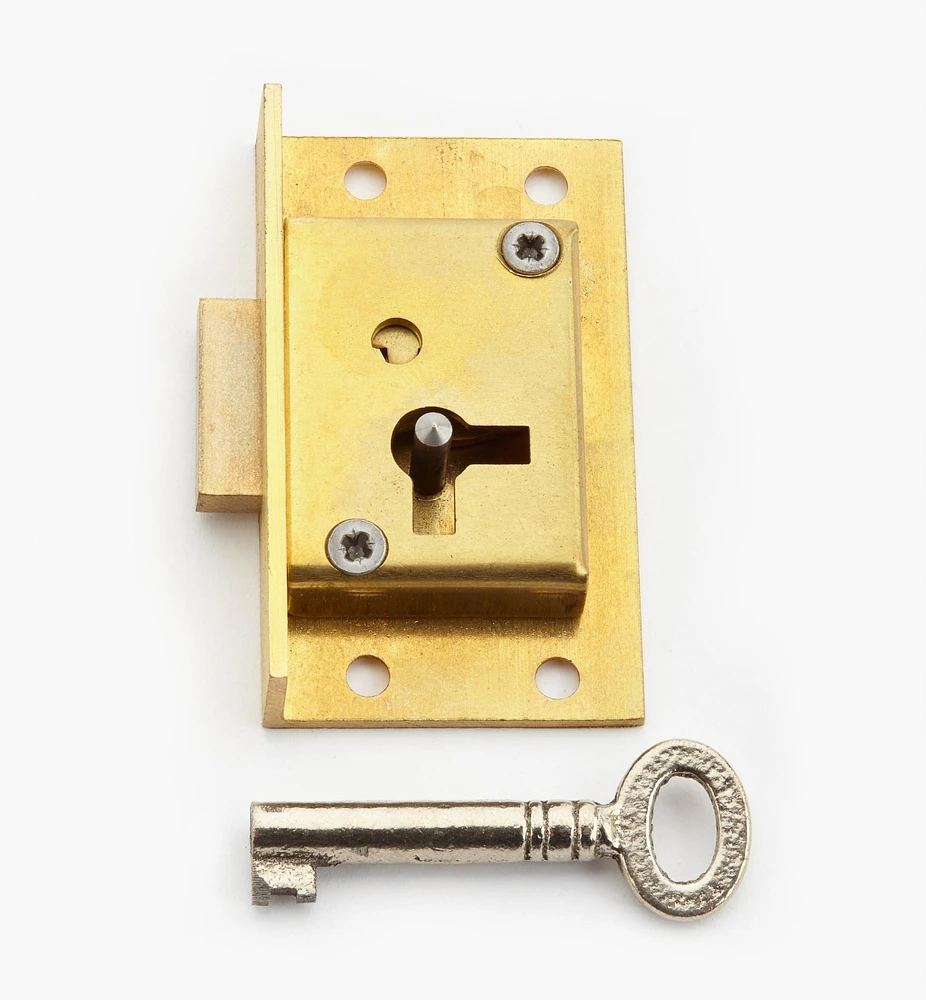

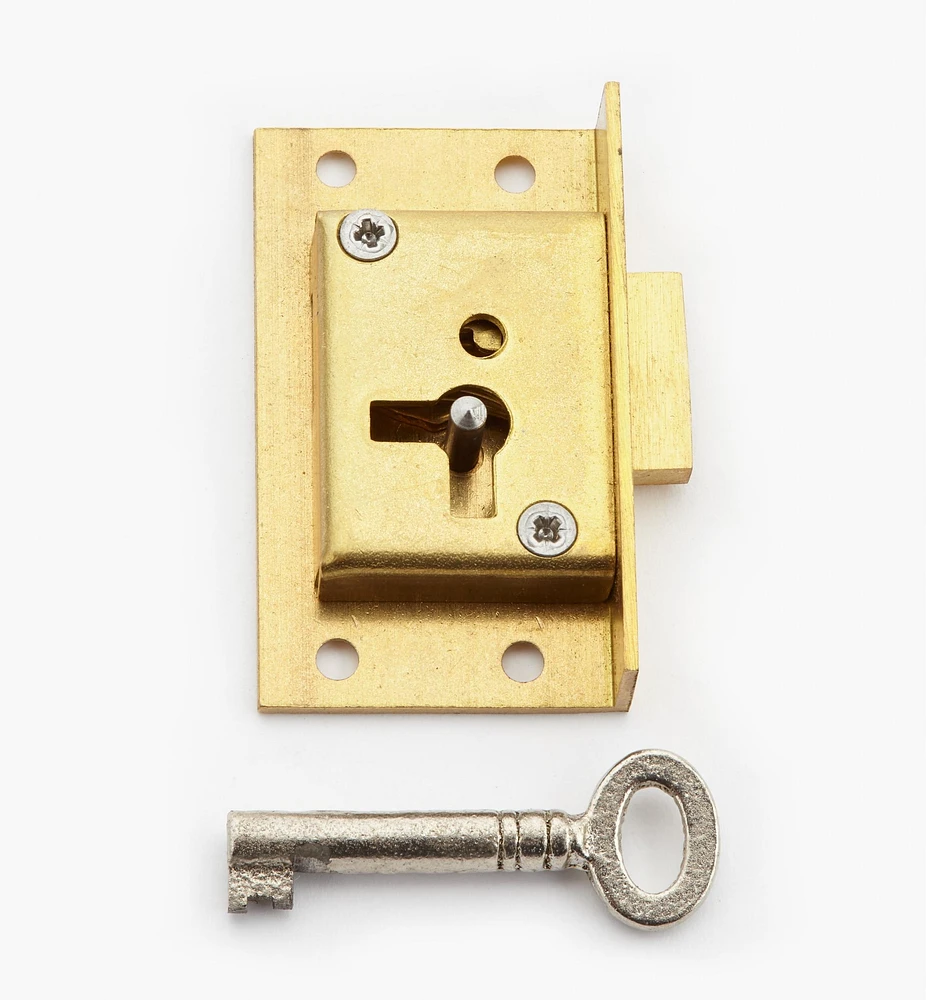

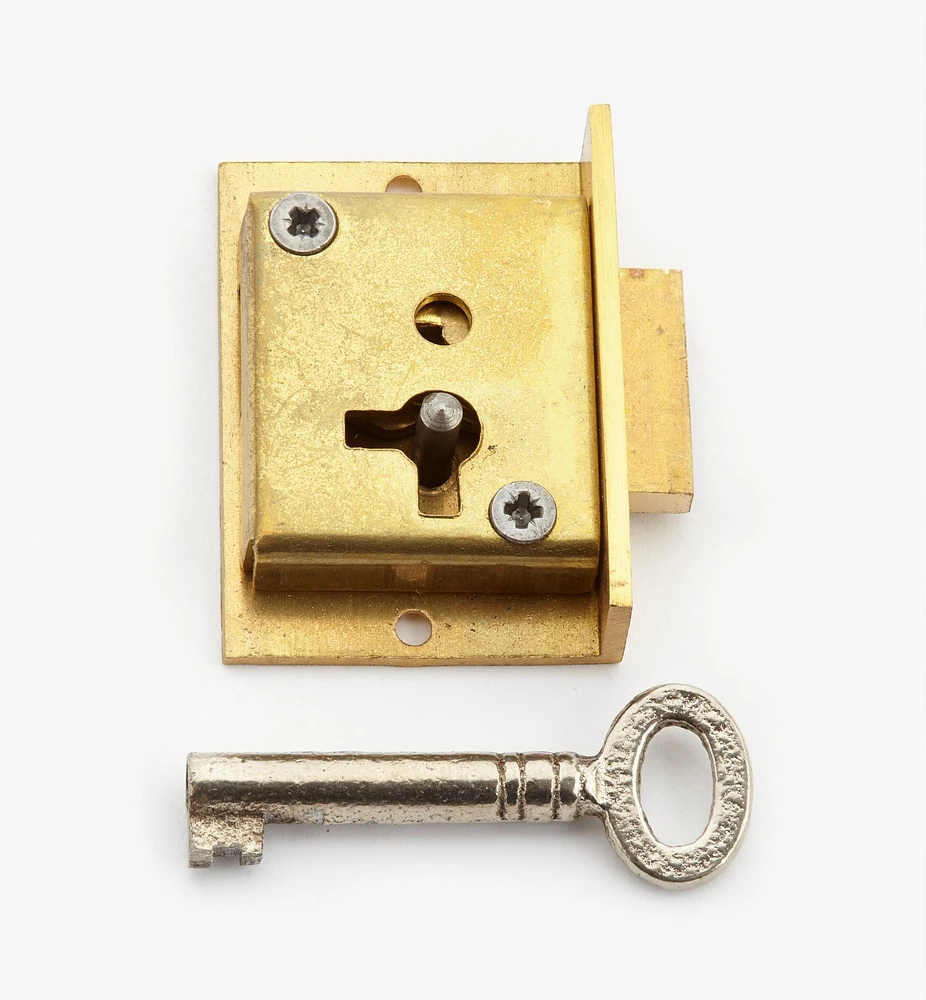

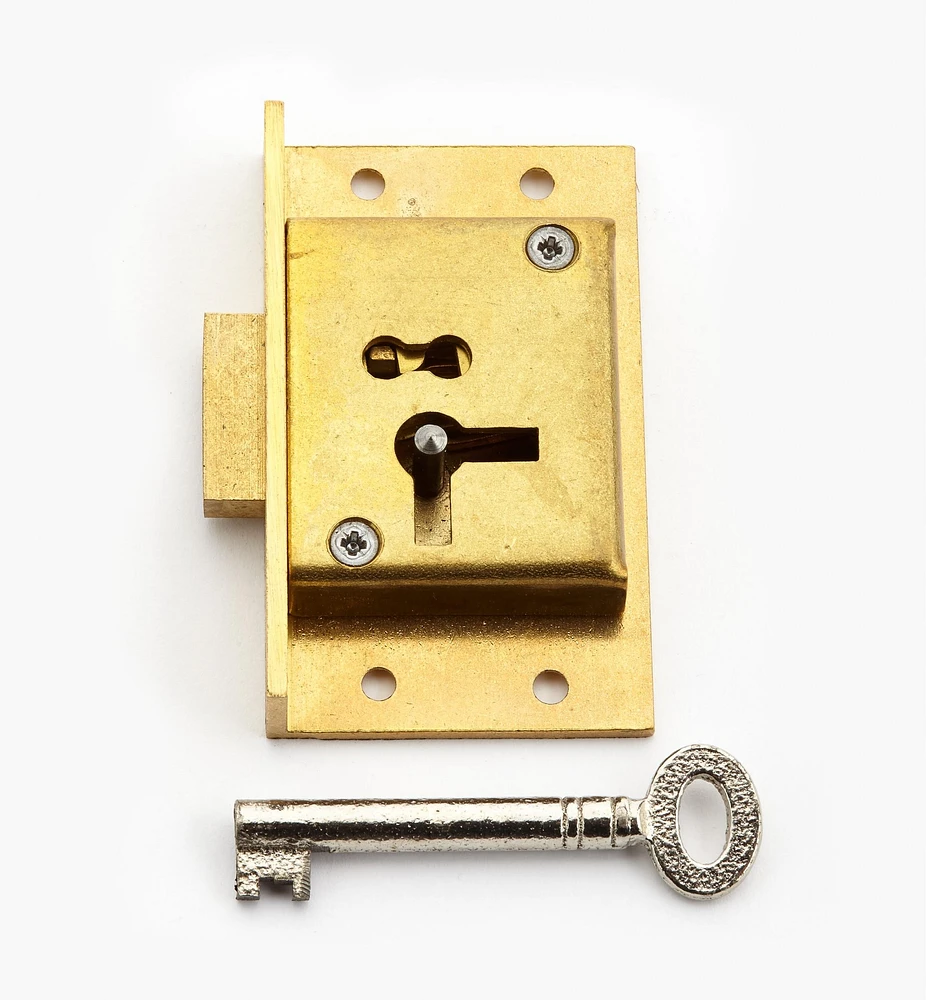

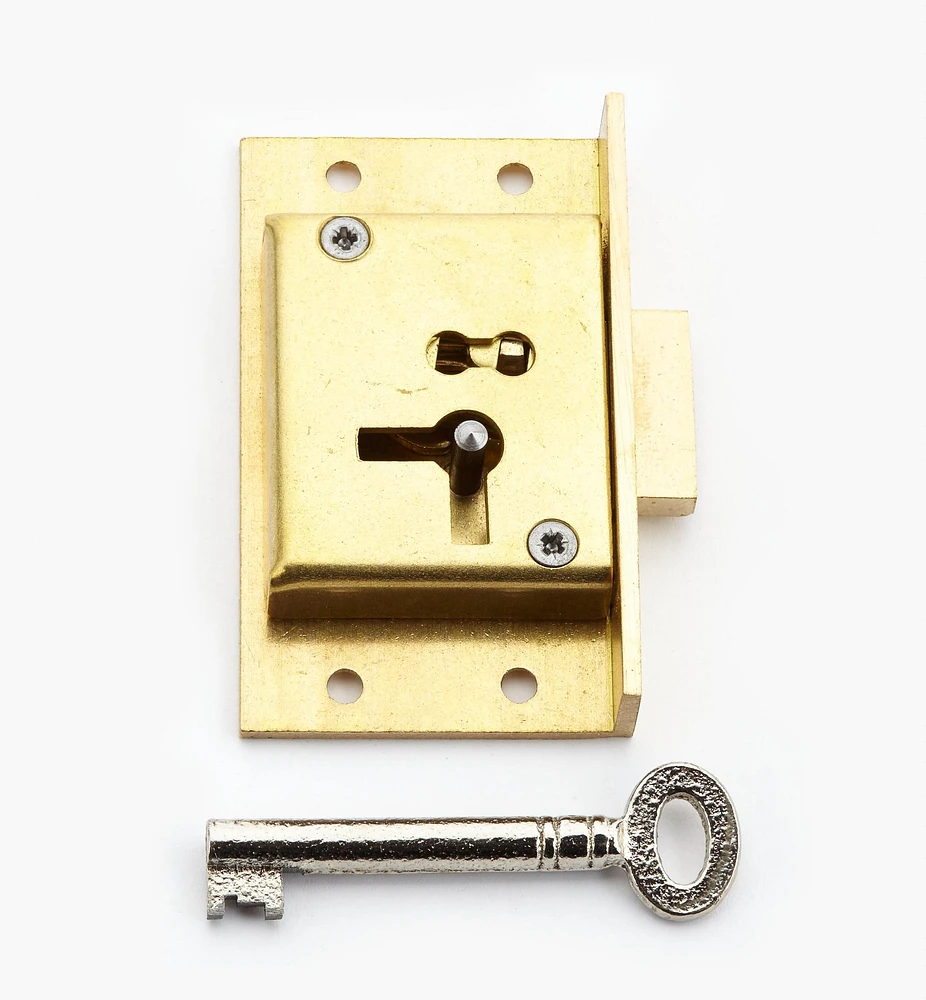

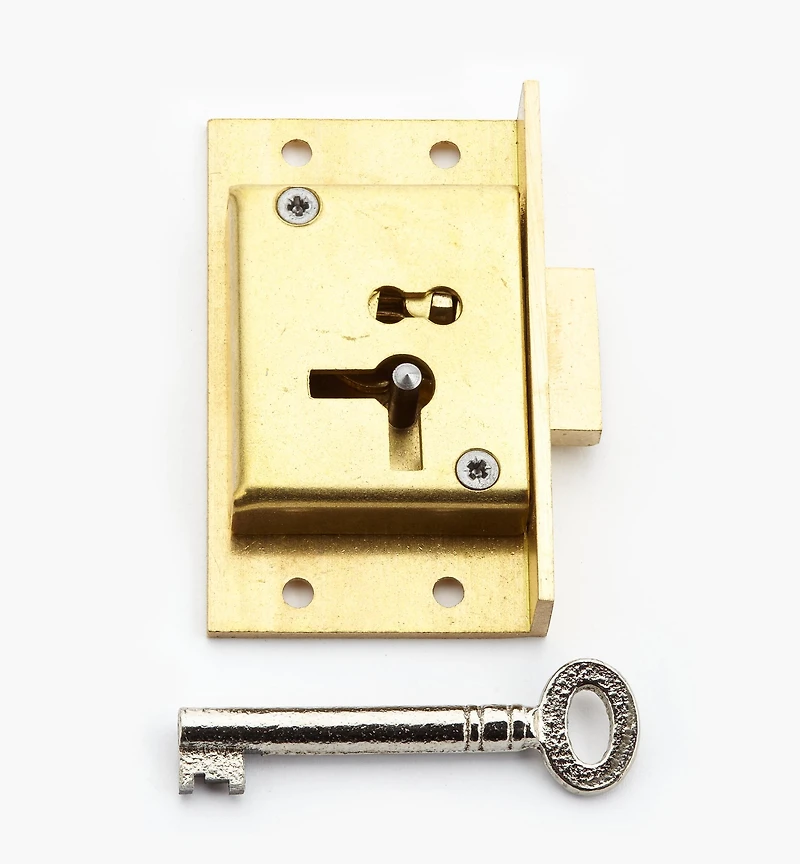

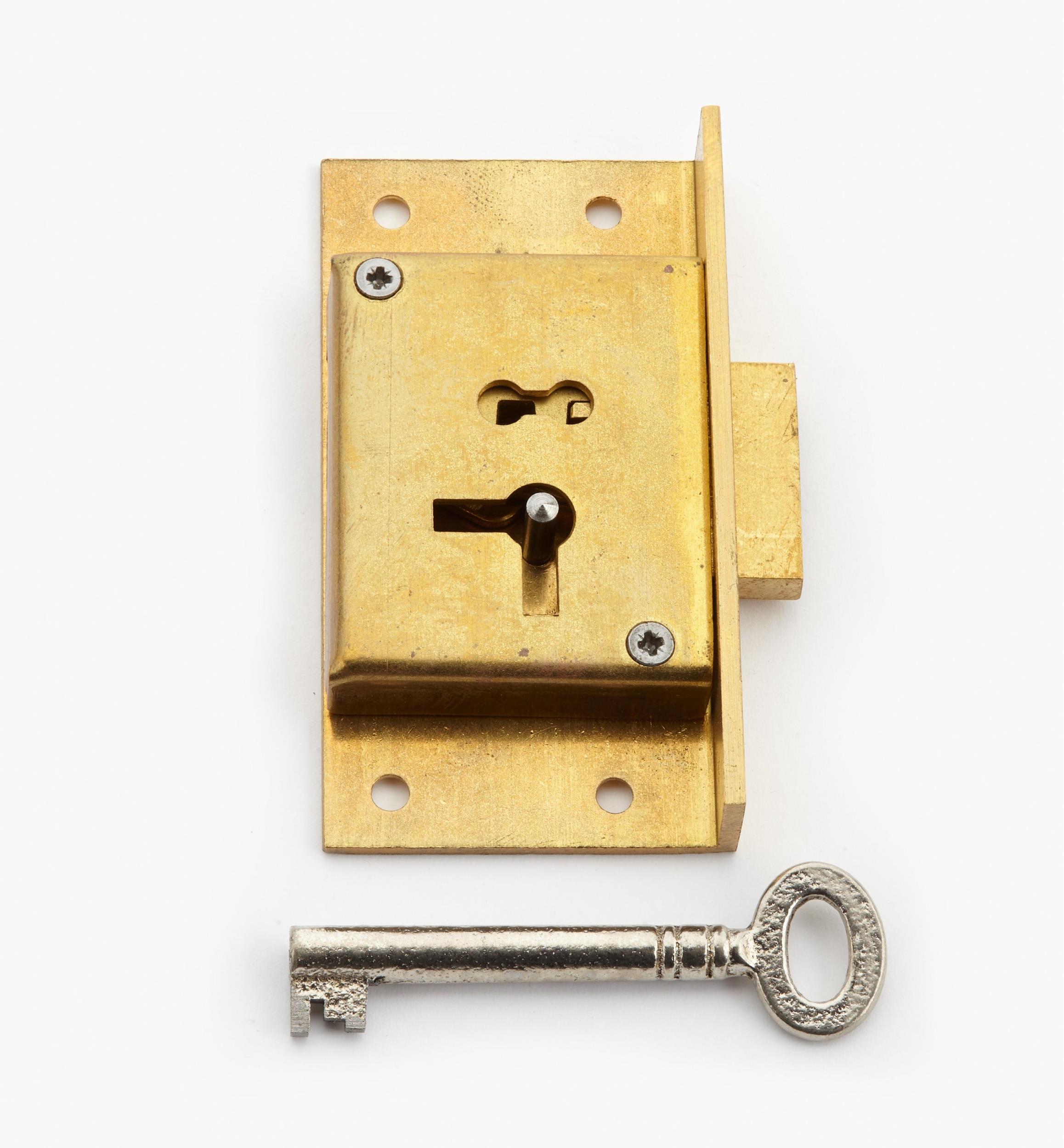

Standard Cut Cupboard Locks

Available as right or left locks, these have an extruded plate, screwed cup, and solid bolt. Both the bolt and the plate have a sanded finish. Can also be used in drawers.

• The 1 1/2” wide locks have a depth of 11/6”, a case depth of 7/16” and a distance to pin of 1/2”; require #2 screws
• The 2” wide locks have a depth of 13/16”, a case depth of 7/16” and a distance to pin of 1/2”; require #3 screws
• The 2 1/2” wide locks have a depth of 1 1/2”, a case depth of 1/2” and a distance to pin of 5/8”; require #4 screws
• The 3” wide locks have a depth of 1 11/16”, a case depth of 9/16” and a distance to pin of 3/4”; require #4 screws

Screws are not included.
