Surface-Mount Locks

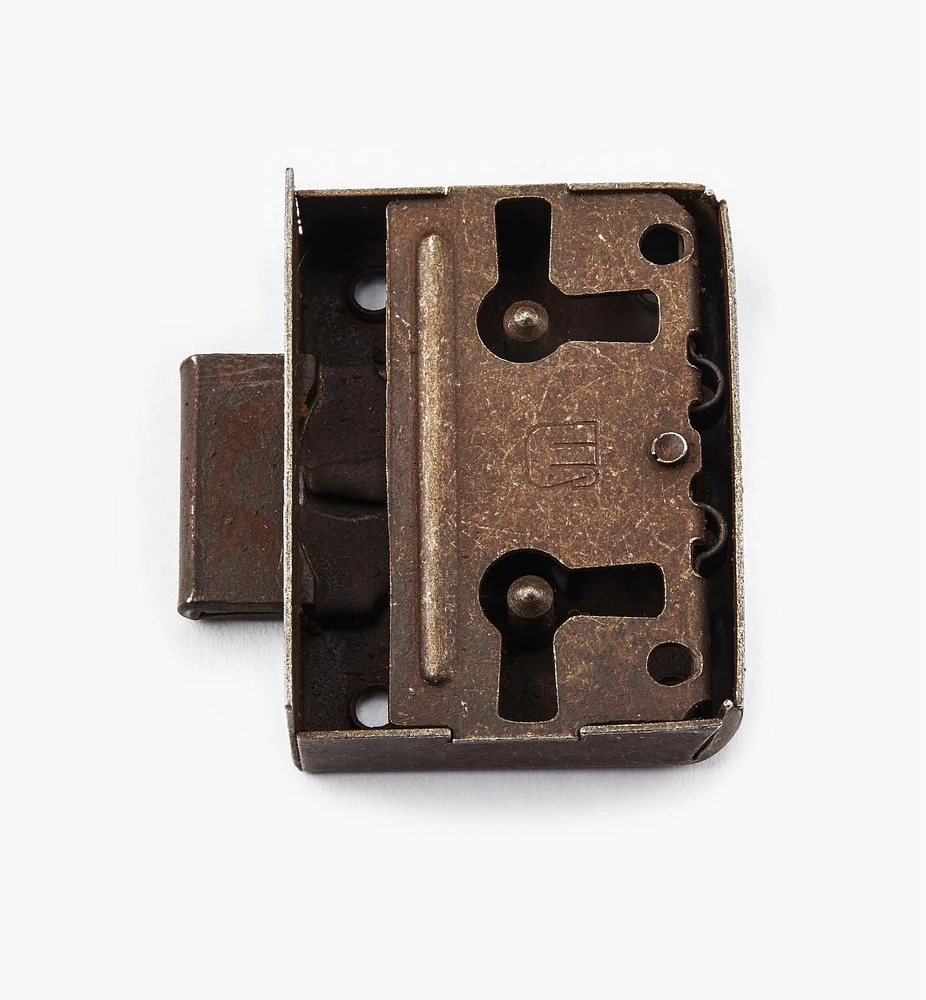

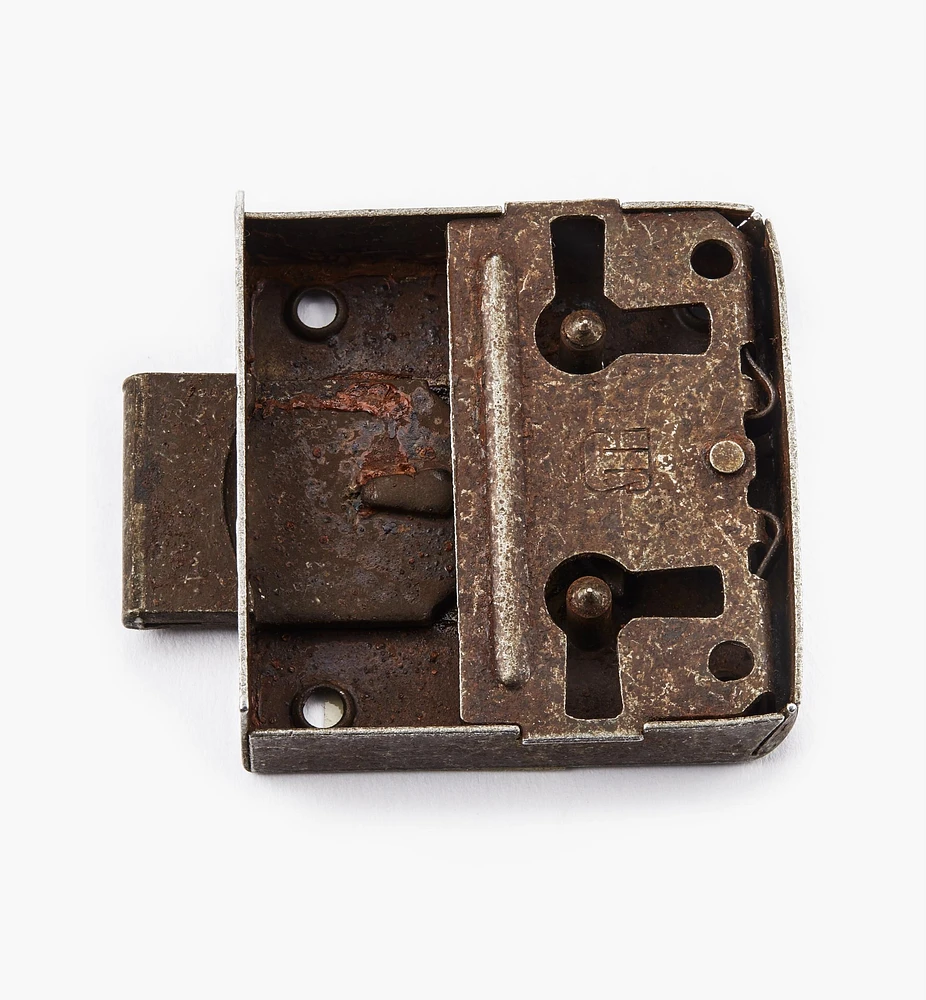

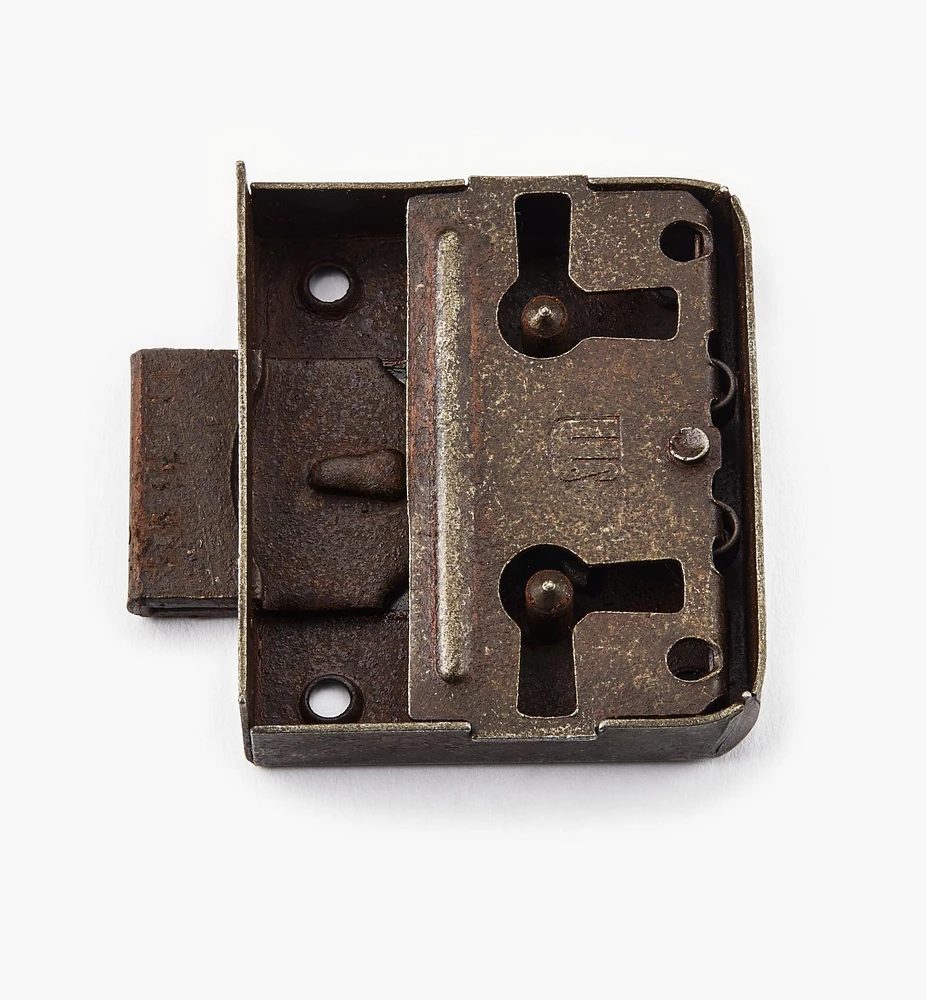

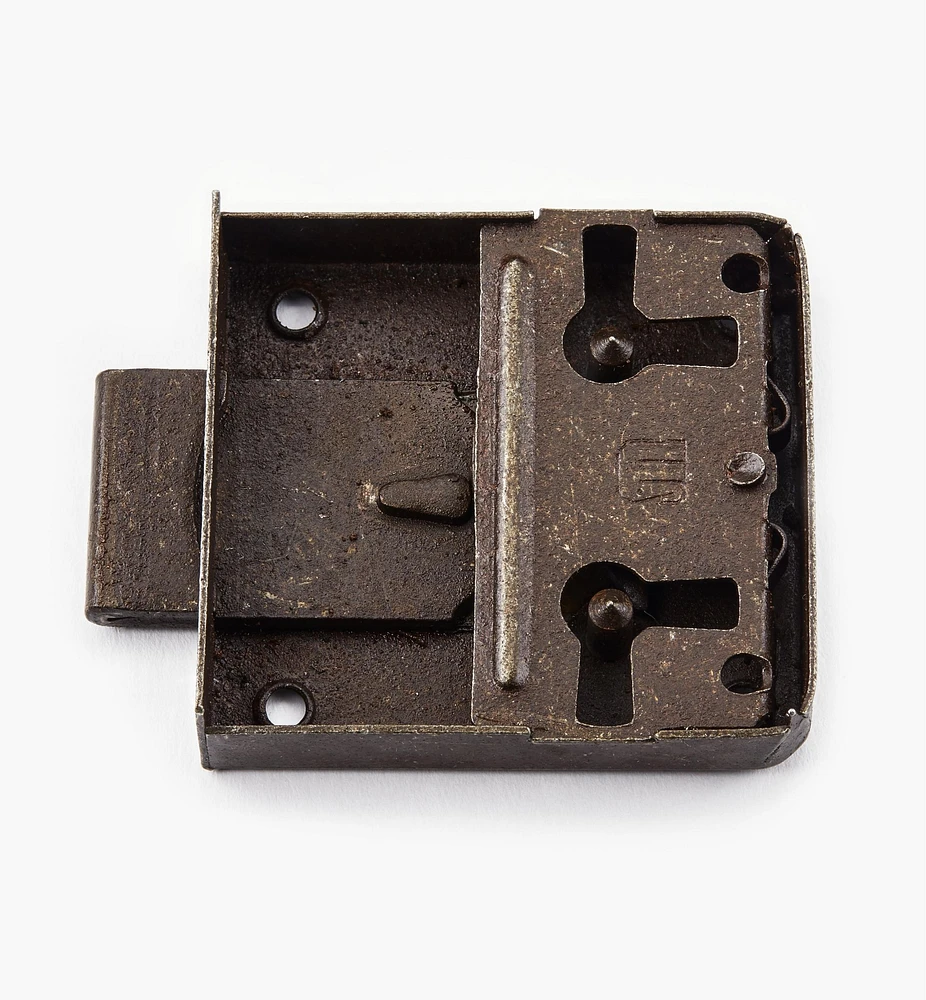

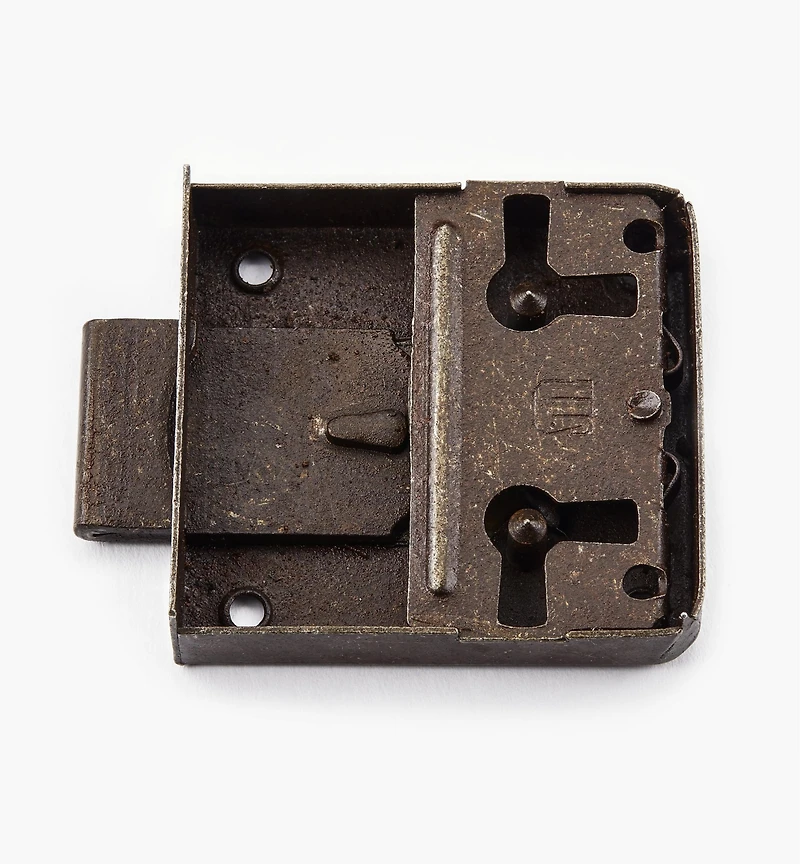

A selection of weathered steel surface-mount distance-to-pin locks, for use on drawers and doors.

The four larger locks have four-way keyholes, while the smallest has a two-way keyhole. When installed, the case projects 3/8", and overhangs the door/drawer lip by 1/4". Each mounts with four round-head #3 screws (not included).

All locks have a width of 1 15/16" and a case depth of 9/16". Distance to pin varies by depth.

• The 1 3/8" deep lock has a 5/8" (15mm) distance to pin
• The 1 1/2" deep lock has a 13/16" (20mm) distance to pin
• The 1 11/16" deep lock has a 1" (25mm) distance to pin
• The 1 7/8" deep lock has a 1 3/16" (30mm) distance to pin
• The 2 1/16" deep lock has a 1 3/8" (35mm) distance to pin

Two styles of cast steel key are available separately to pair with these locks.
