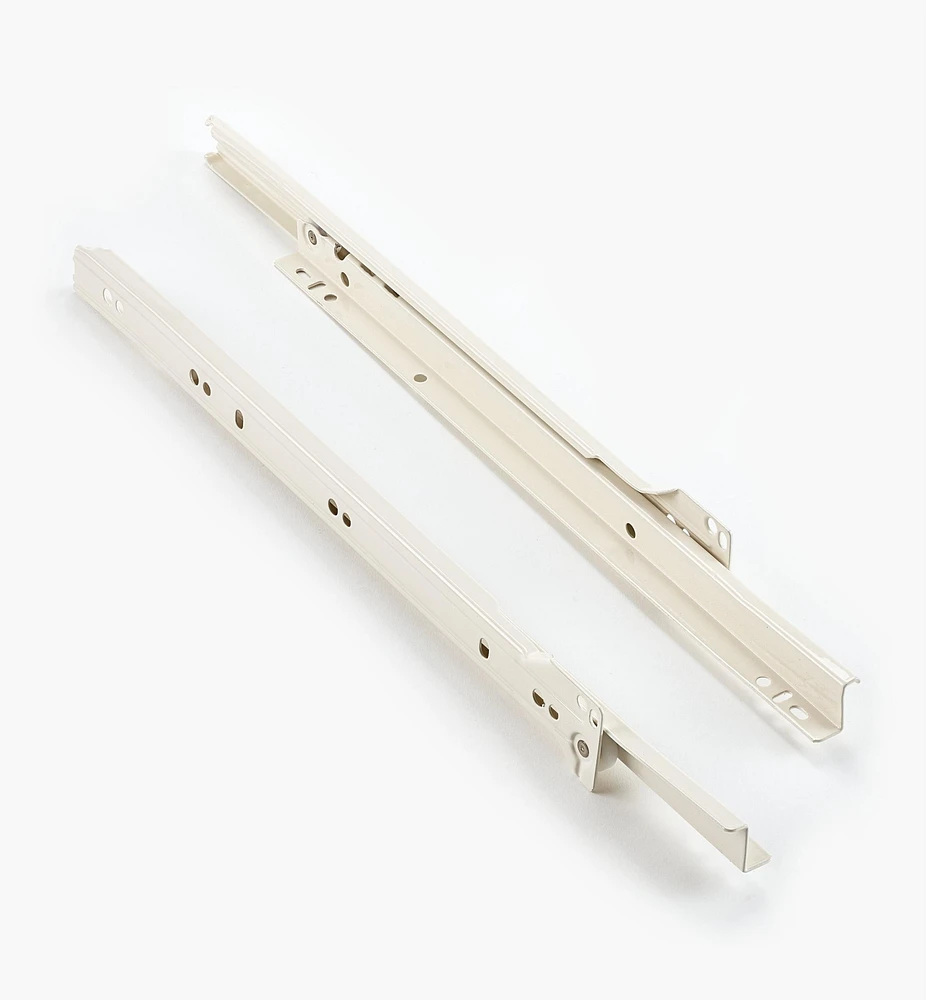

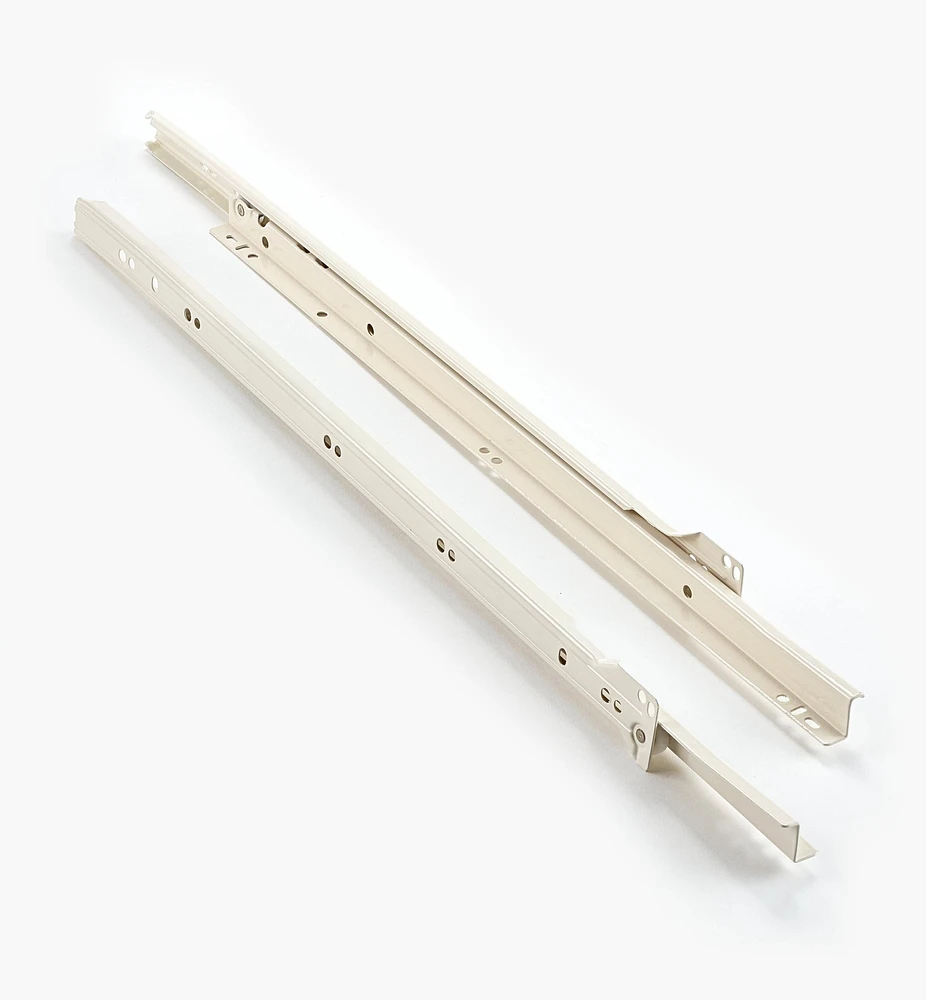

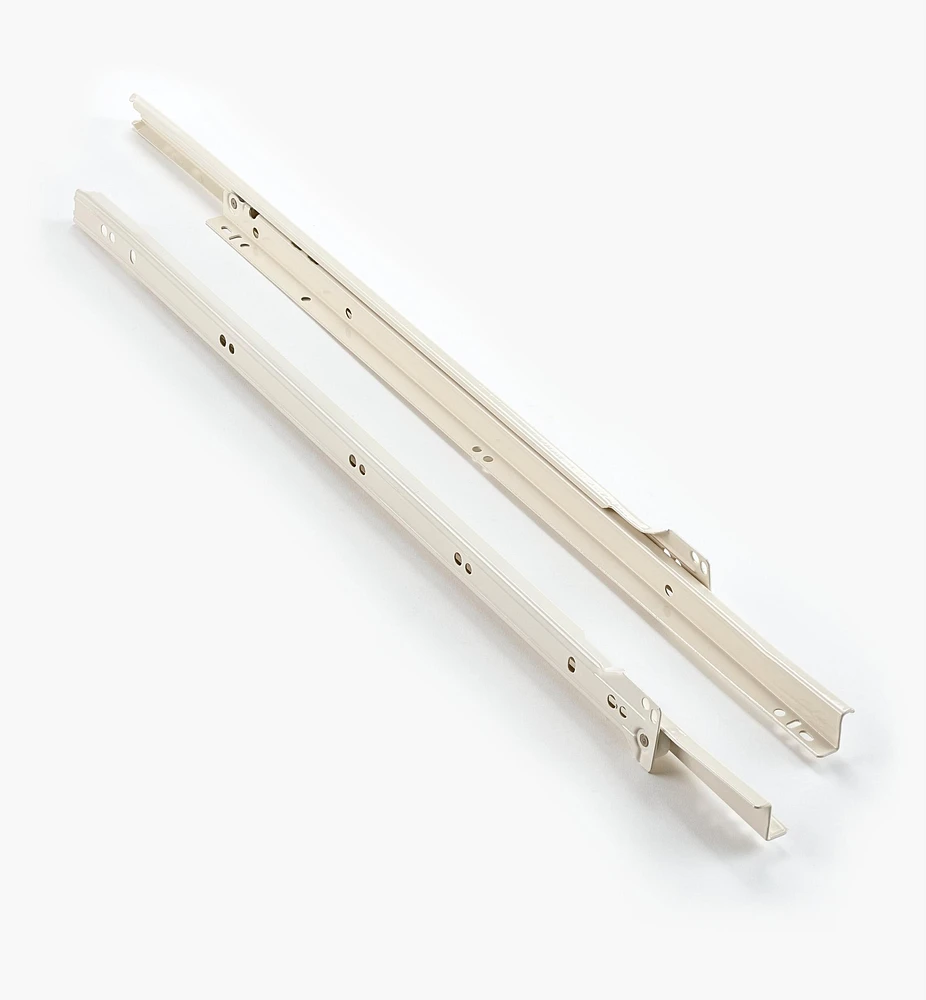

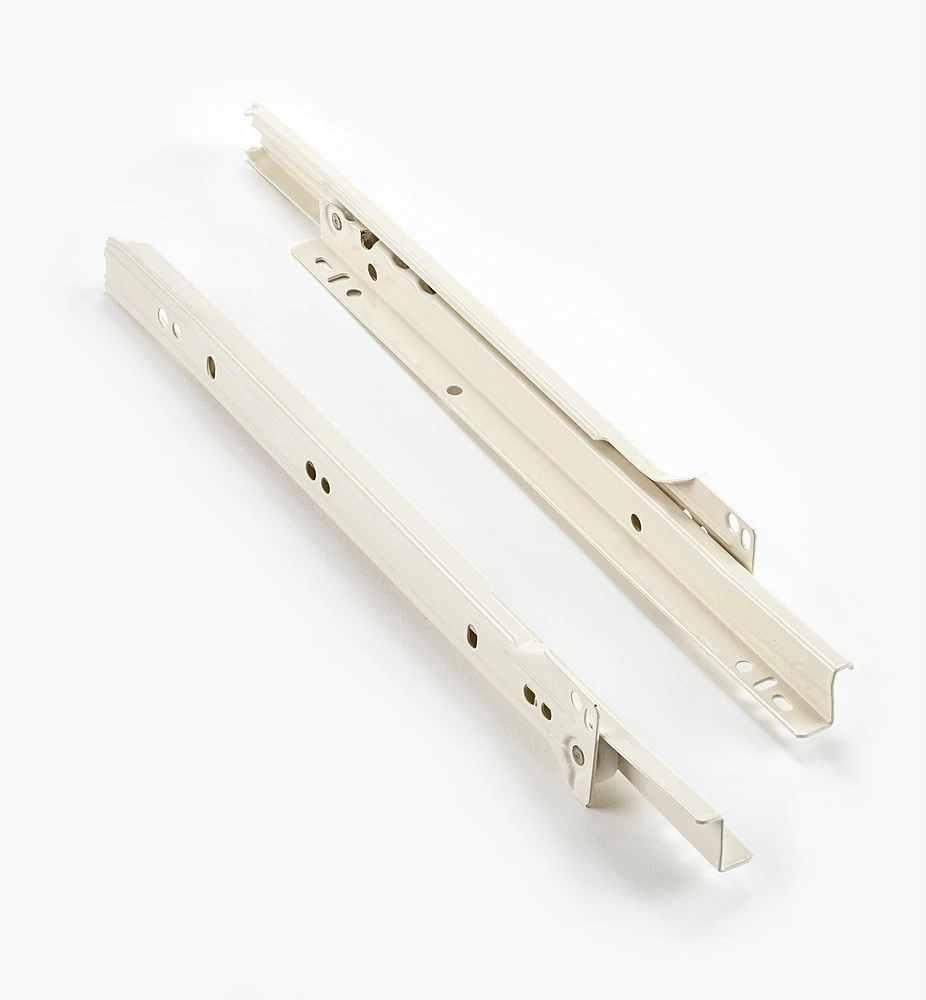

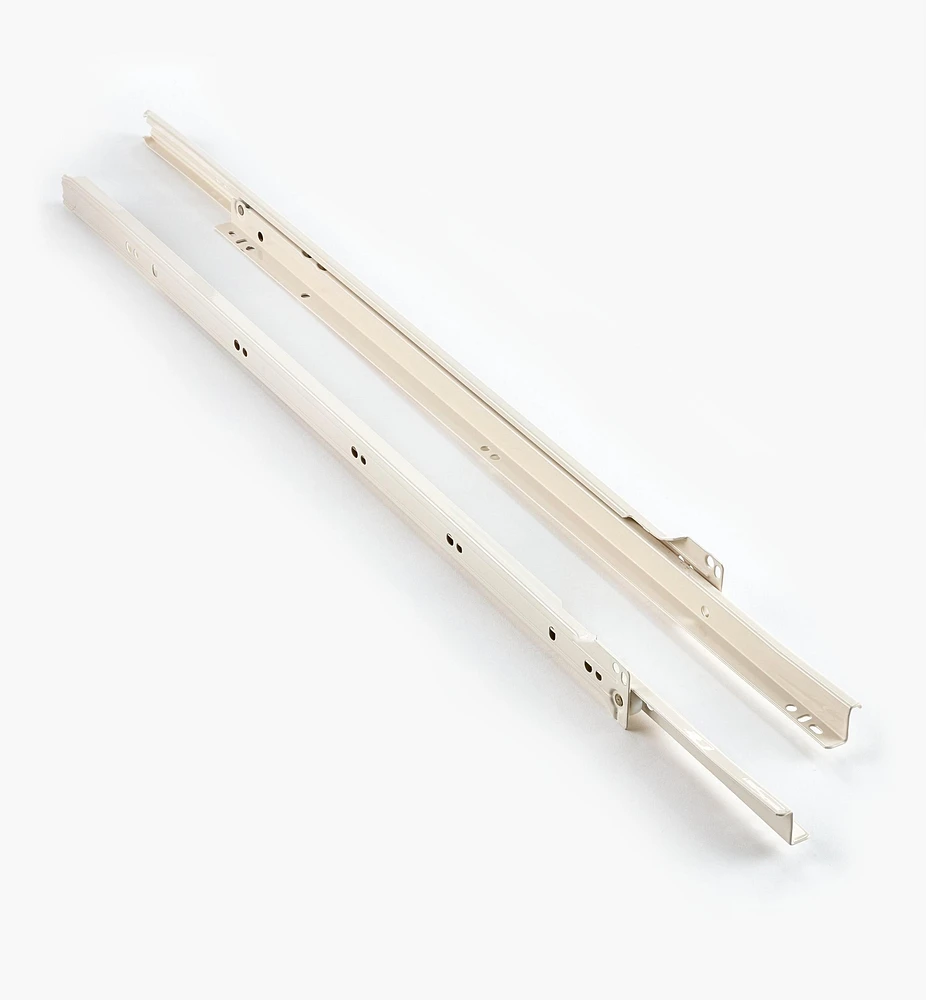

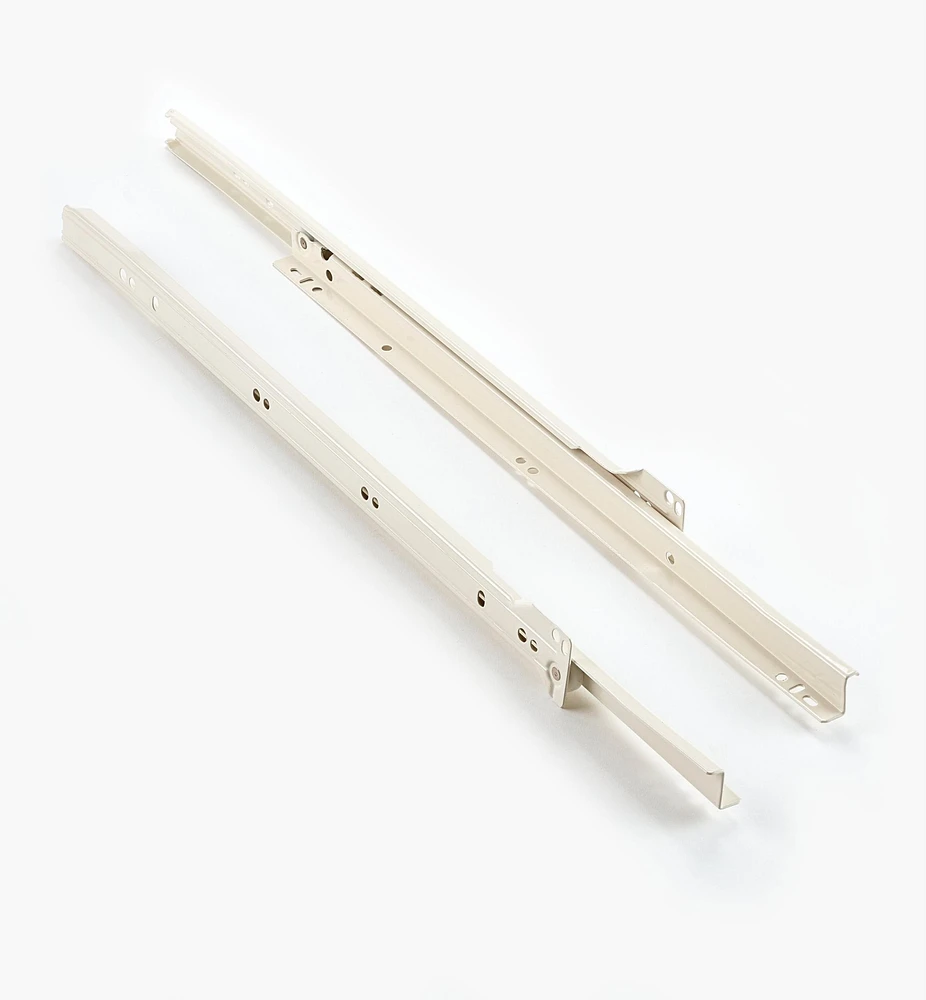

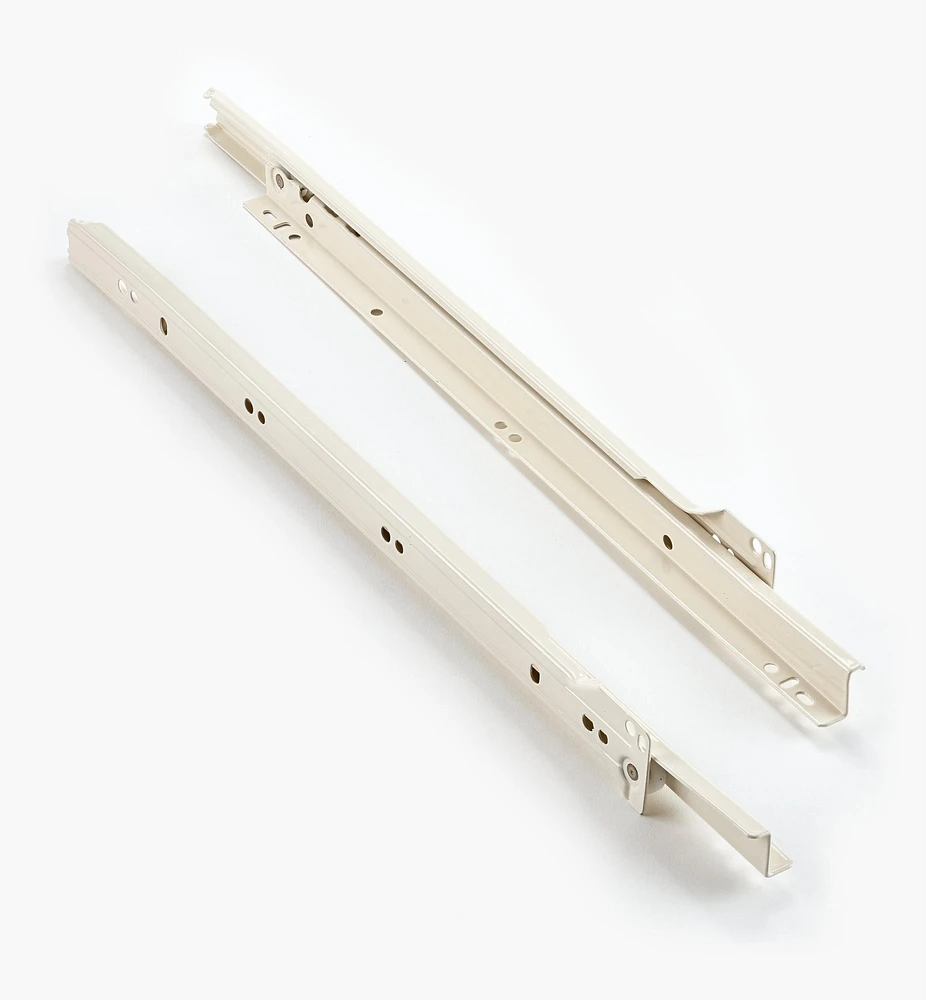

Standard Blum Slides

These 3/4 single-extension, bottom-mount slides are rated for 100 lb static load or 75 lb dynamic load. The slides have one captive roller, and require 1/2" of side clearance. Slides are self-closing in the last 2" of travel, with a parallel drop of 3/32".

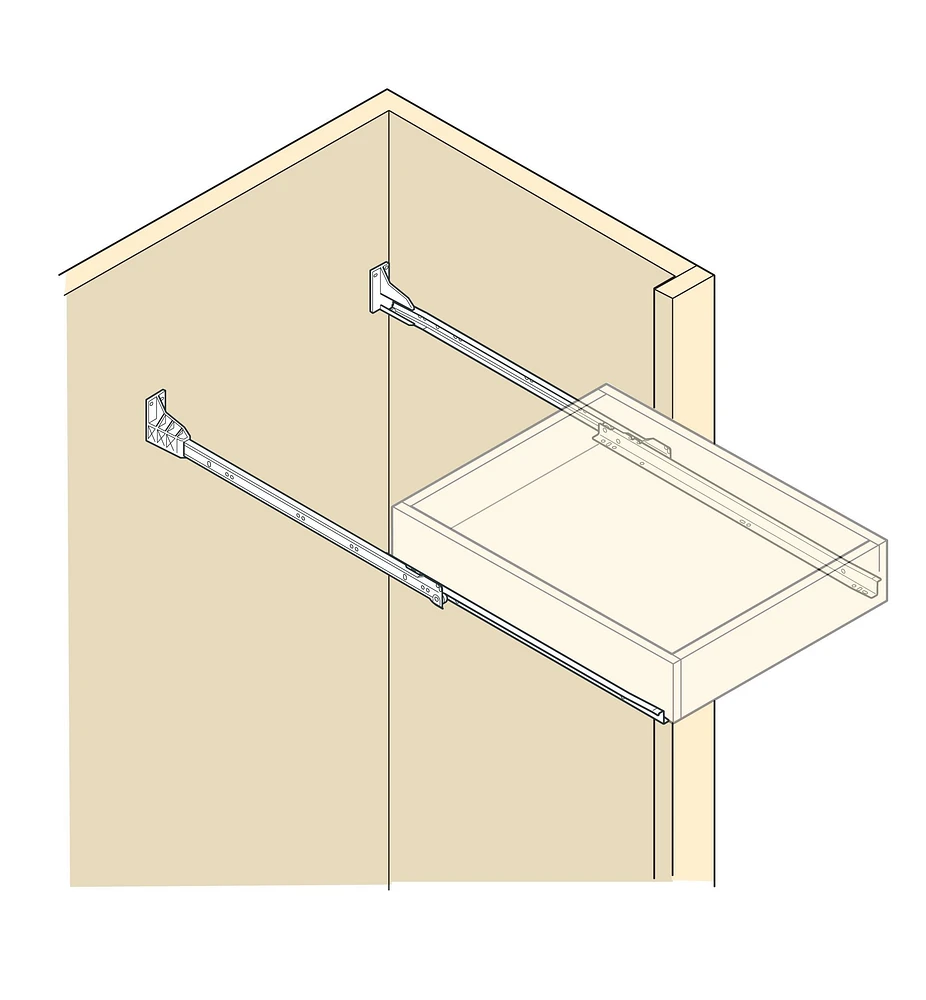

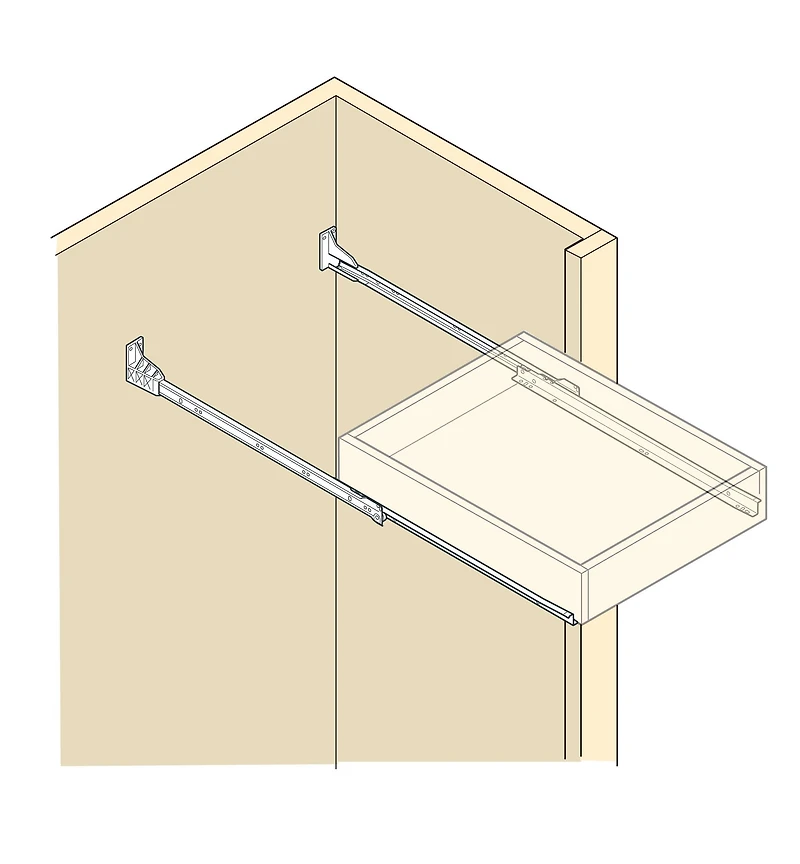

A pair of optional rear-mount sockets is available separately for face-frame applications. Nominal Imperial sizes shown in brackets. Typical extension loss is 3 3/8" on the smallest slide, to 4 15/16" on the largest.

Sold in pairs with instructions and mounting hardware. Lifetime guarantee.

Made in USA and Austria.
