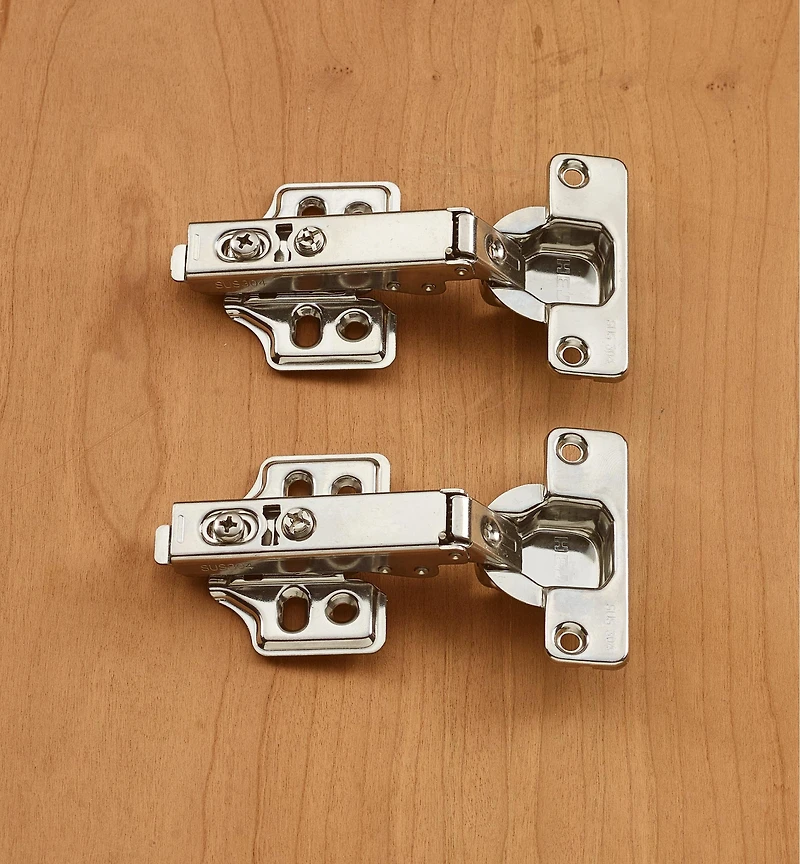

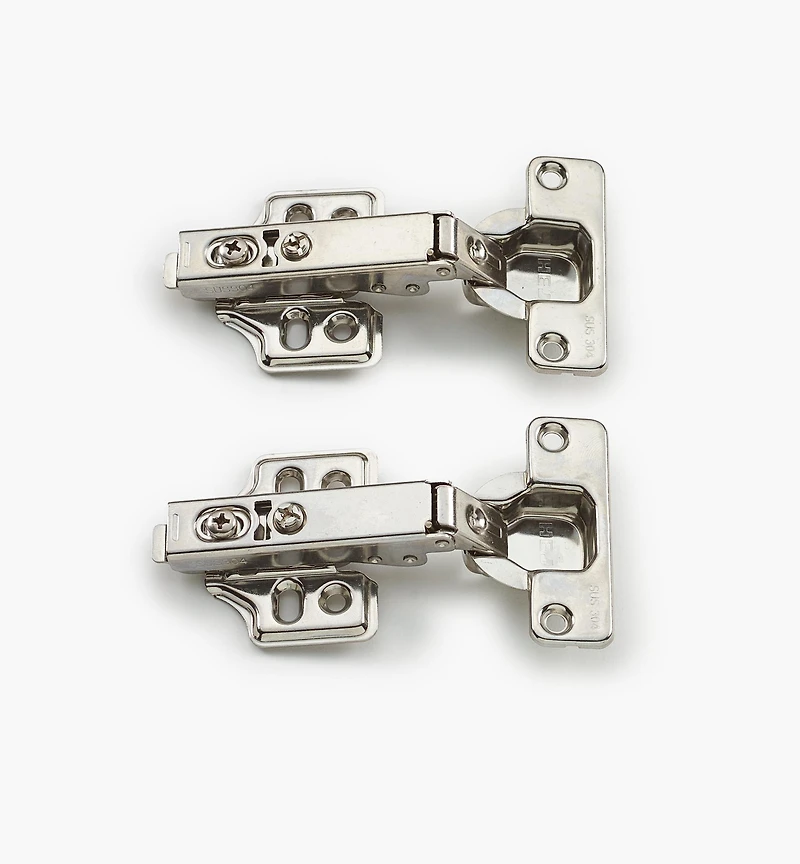

Soft-Close Stainless-Steel Euro-Style Cup 105° Overlay Hinges

With a soft-close mechanism to provide a smooth, controlled closing motion, these stainless-steel hinges are a good choice for use anywhere corrosion is a concern (outdoor kitchen, outbuilding, boat or RV).

European-style clip hinges allow doors to be removed without tools and without loss of adjusted positions. Hinges are adjustable ±3mm vertically, ±2mm horizontally and 3mm/-2mm in depth after installation.

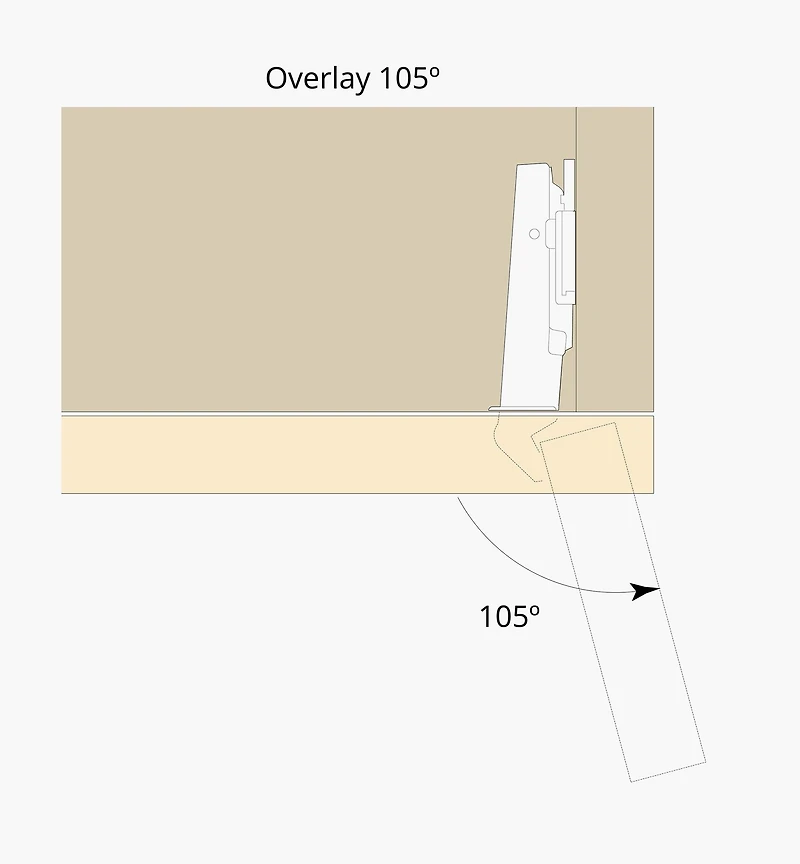

Configured for overlay applications, they have a maximum opening angle of 105° and an integrated spring to hold the door open or closed. Intended for use on doors from 16mm to 22mm (5/8" to 7/8") thick. The 35mm (1 3/8") diameter hinge cup, which is mounted on the door, is 12.5mm (1/2") deep.

Sold in pairs. Mounting hardware included. Soft-close mechanism may be affected by sub-freezing temperatures.
