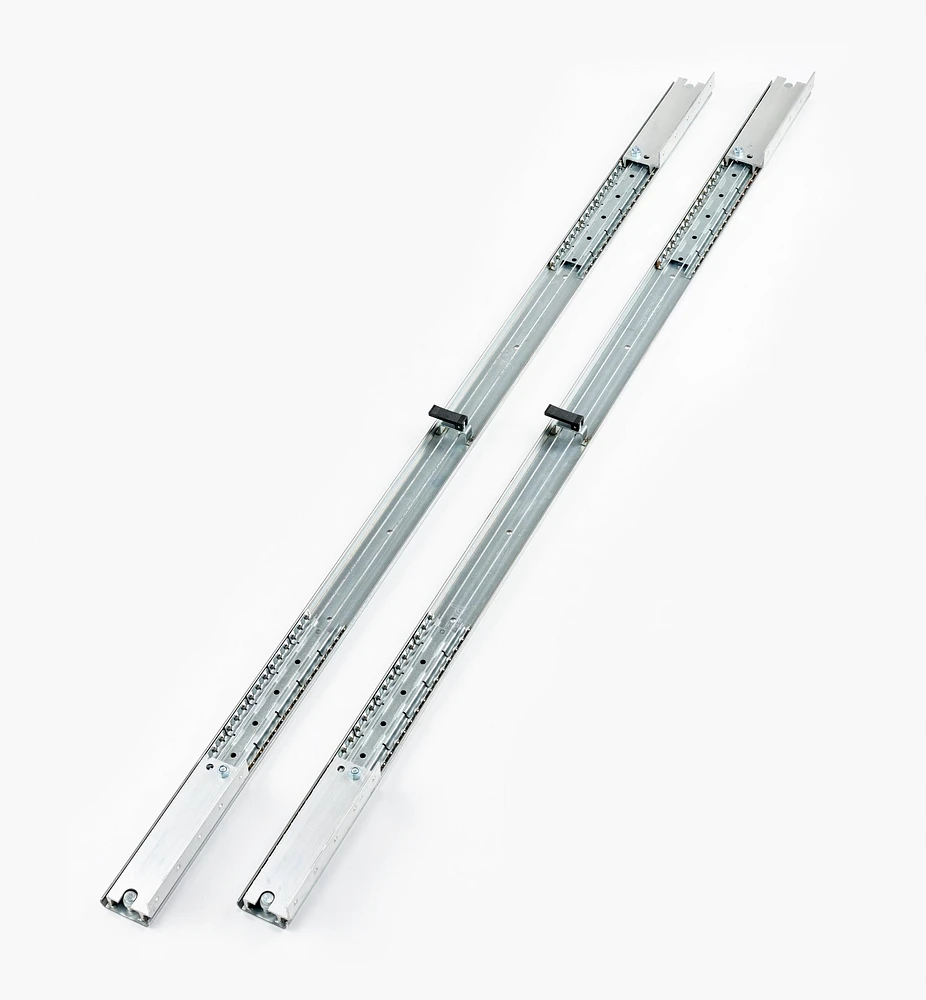

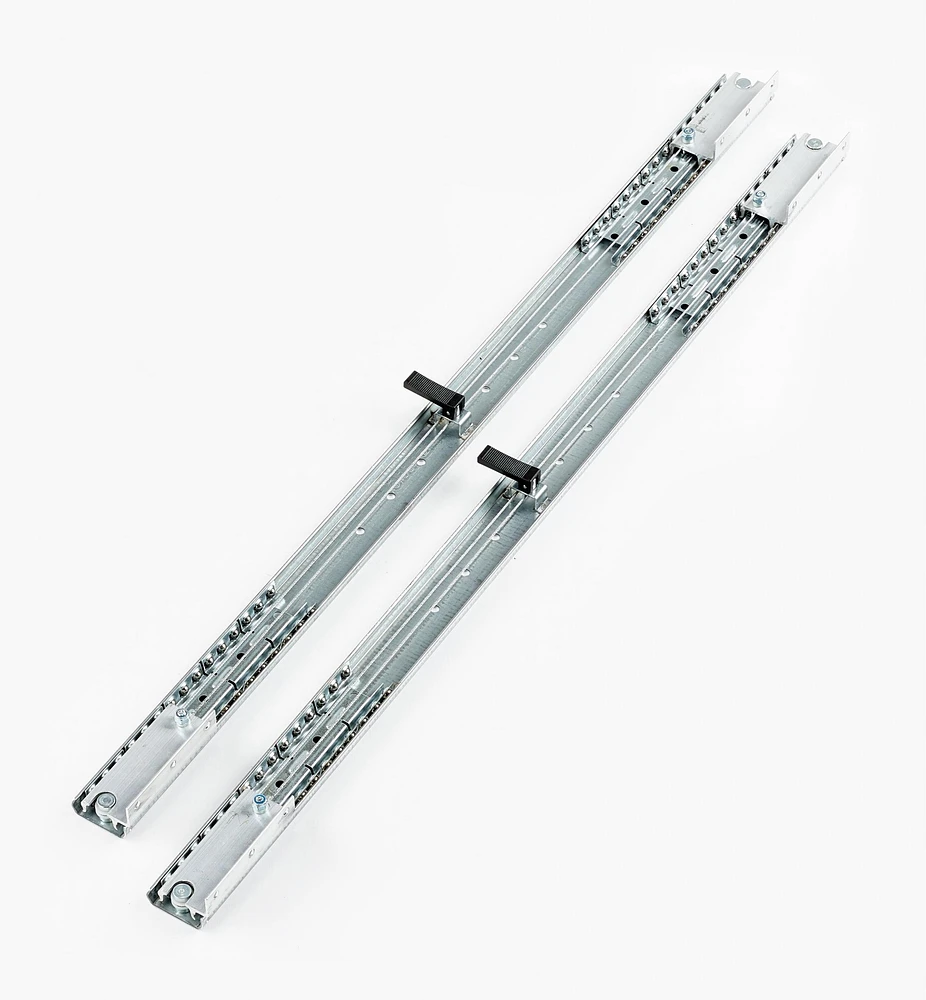

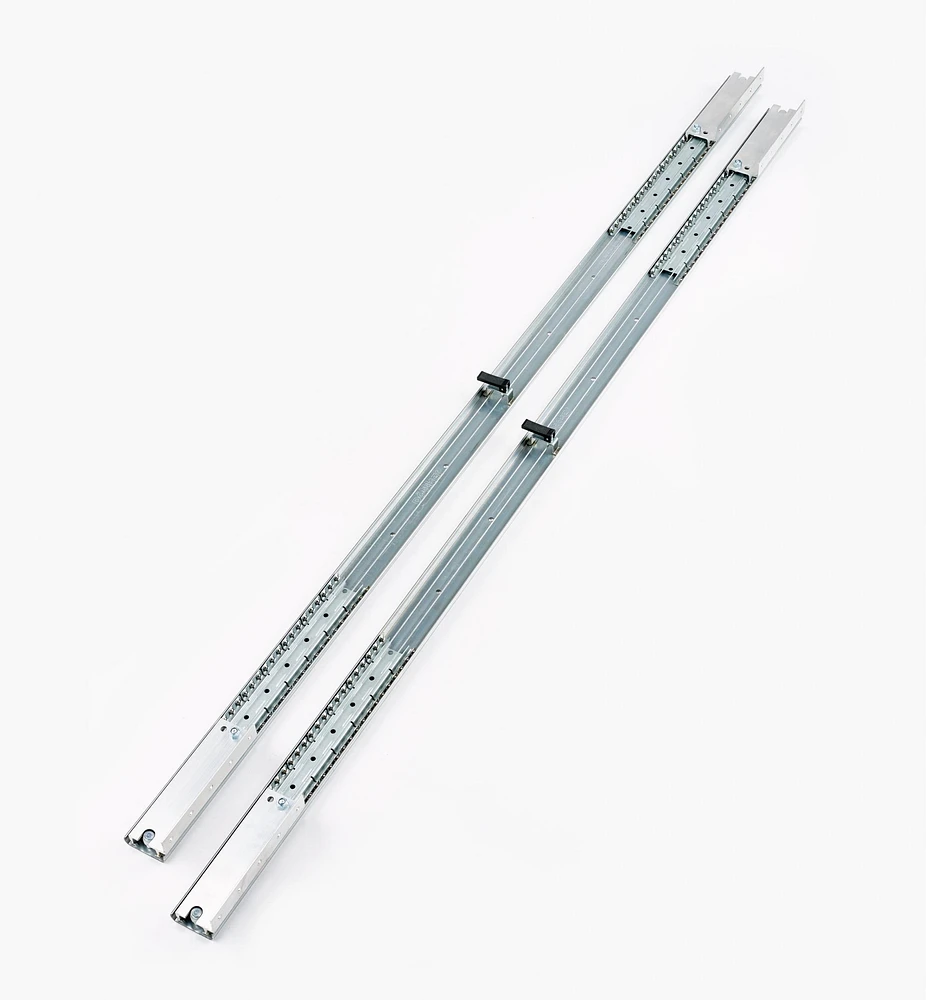

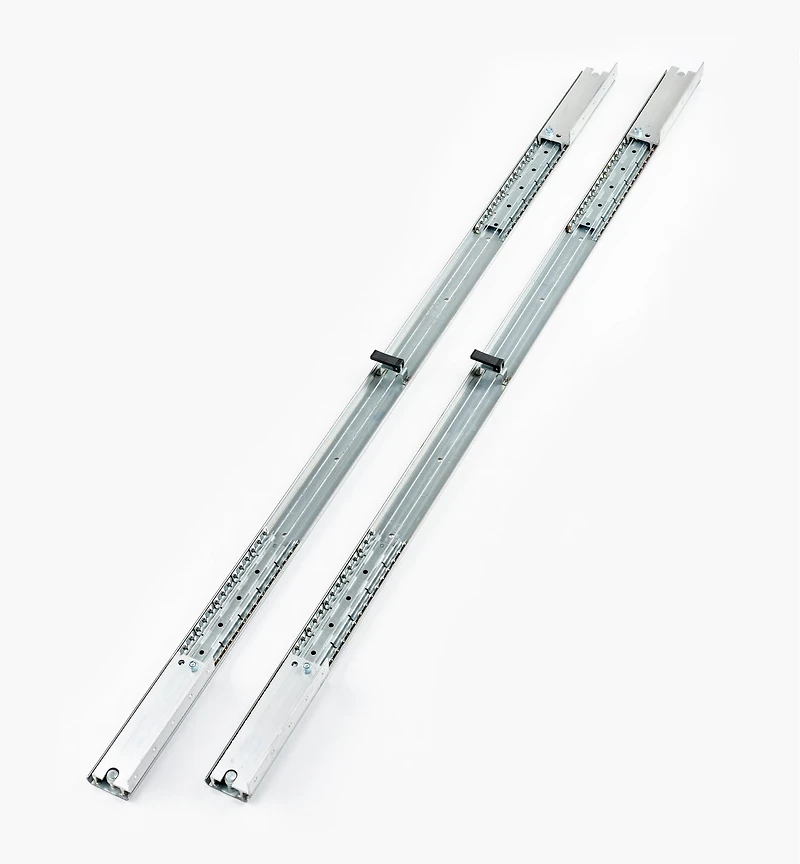

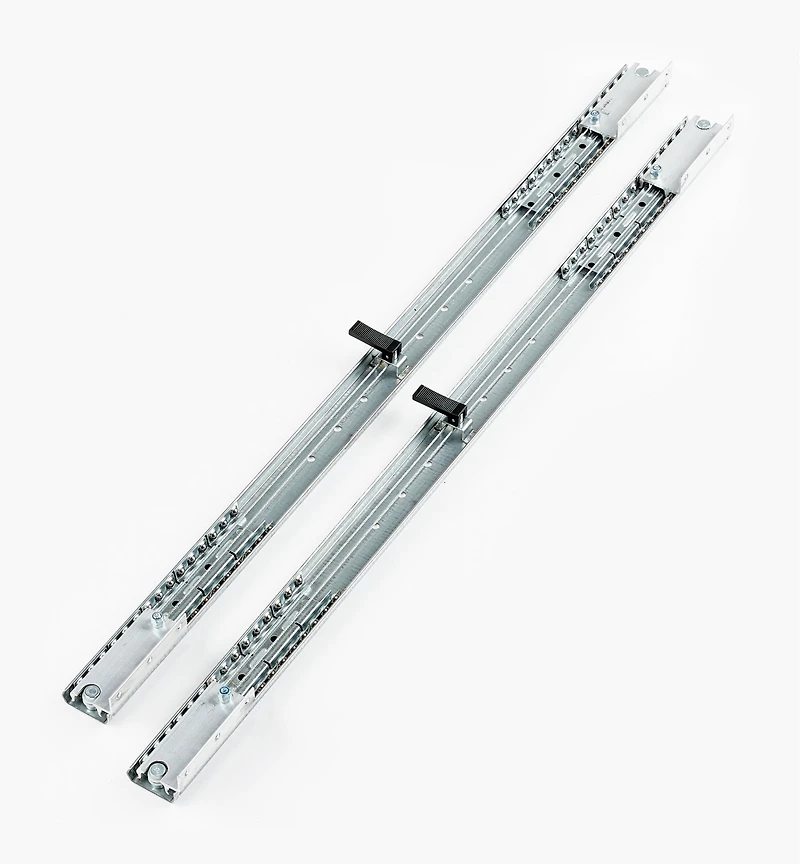

Side-Mount Table Slides

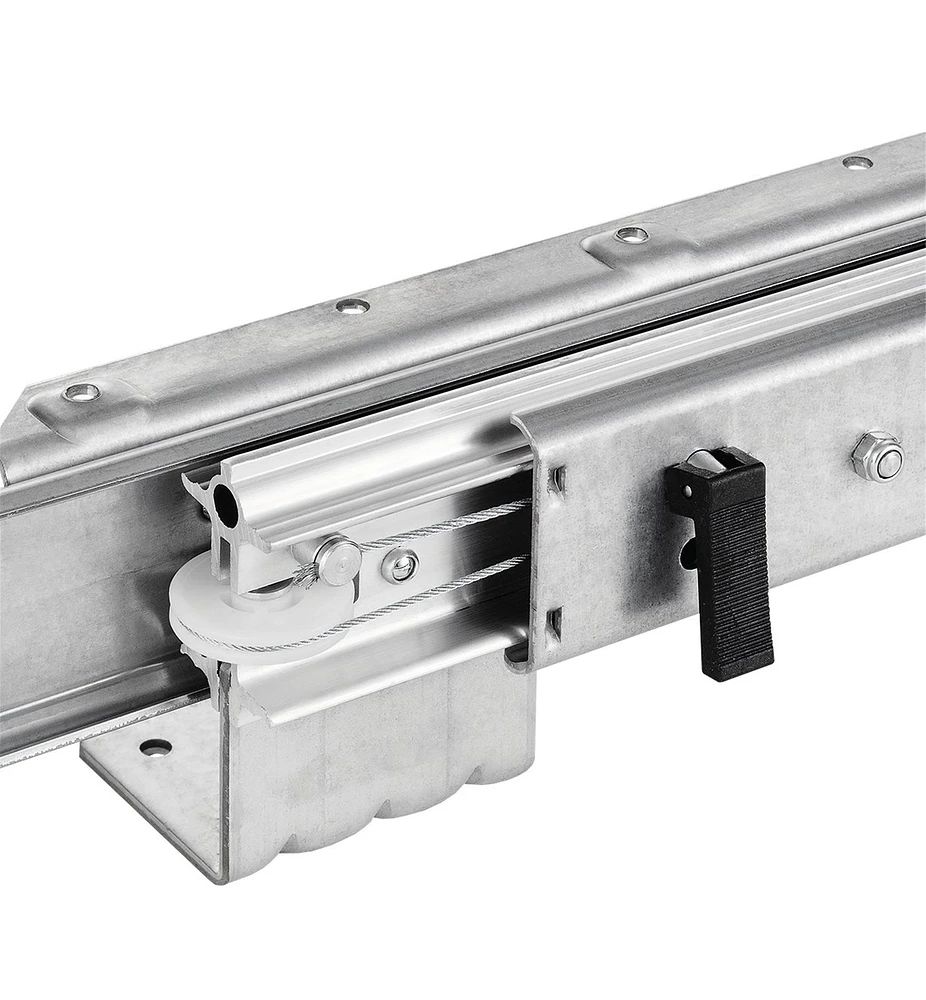

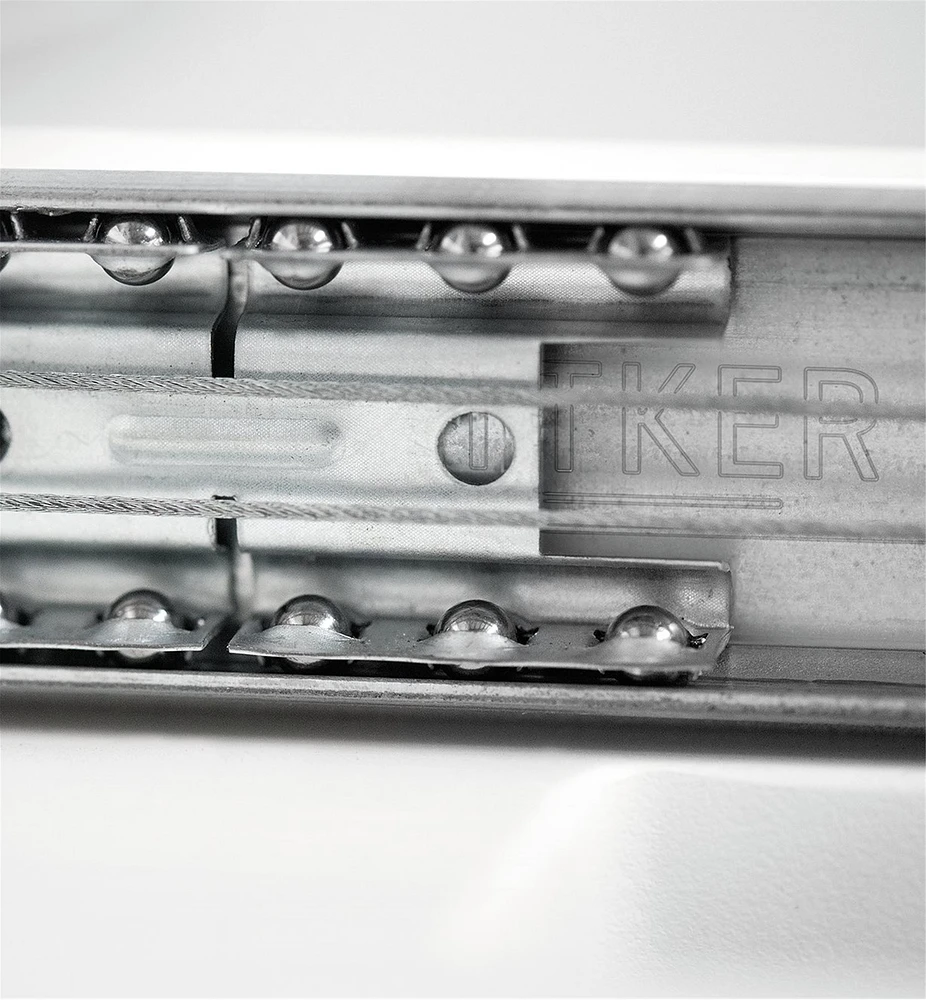

These German-made slides are sturdily built from galvanized steel and aluminum, with stainless-steel ball bearings for smooth, reliable operation. A steel cable pulley system provides synchronous opening and closing of the table-top halves to prevent tipping.

The 700mm slides can support a single leaf 500mm in length and have a load capacity of 60kg; the 1150mm slides can support two leaves, each up to 400mm in length, and have a load capacity of 90kg; the 1350mm slides can support two leaves, each up to 500mm in length, and have a load capacity of 90kg. Slide size given is closed length.

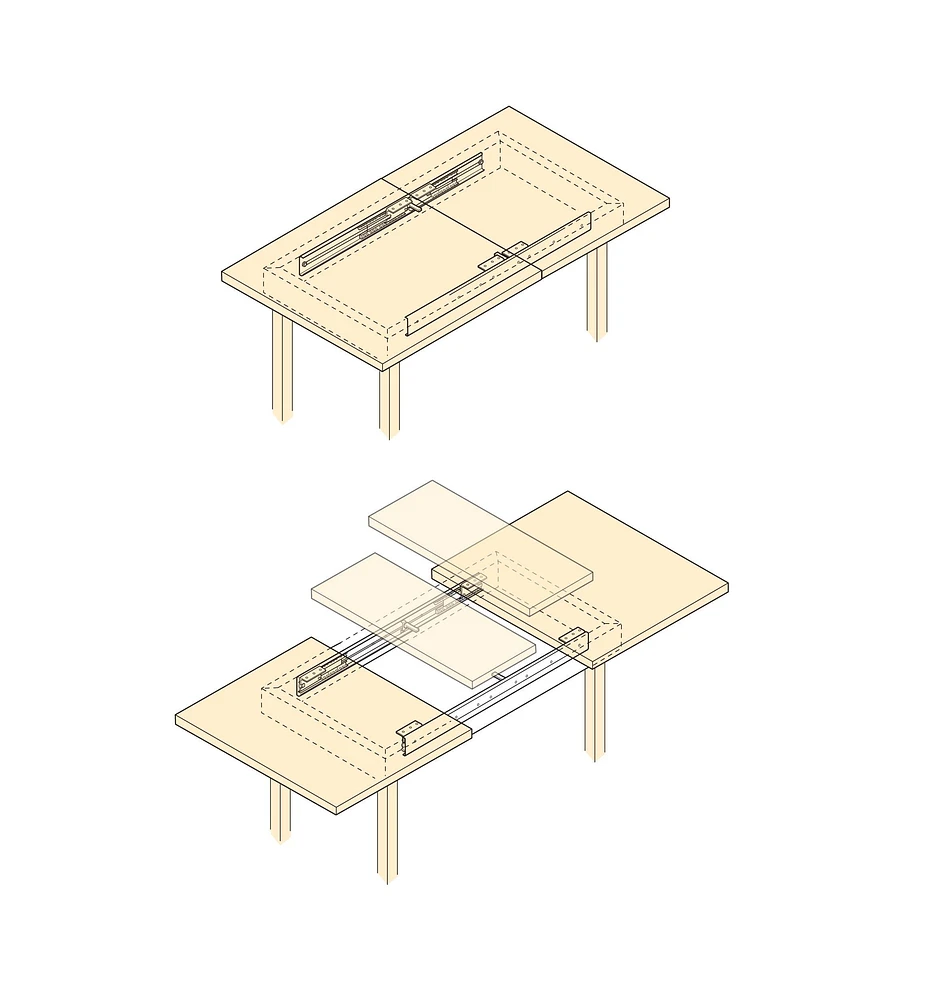

The side-mount slides are primarily for four-leg tables. The slides attach directly to the inner face of a table skirt and have centrally located integral slide locks to prevent unwanted movement of the table top.

All slides come with installation instructions (mounting hardware not included).
