Bottom-Mount Top-Adjust Leveller
Bottom-Mount Top-Adjust Leveller

Lee Valley

Bottom-Mount Top-Adjust Leveller

From Lee Valley

Current price: $2.95
Visit retailer's website
*Product information may vary - to confirm product availability, pricing, shipping and return information please contact Lee Valley

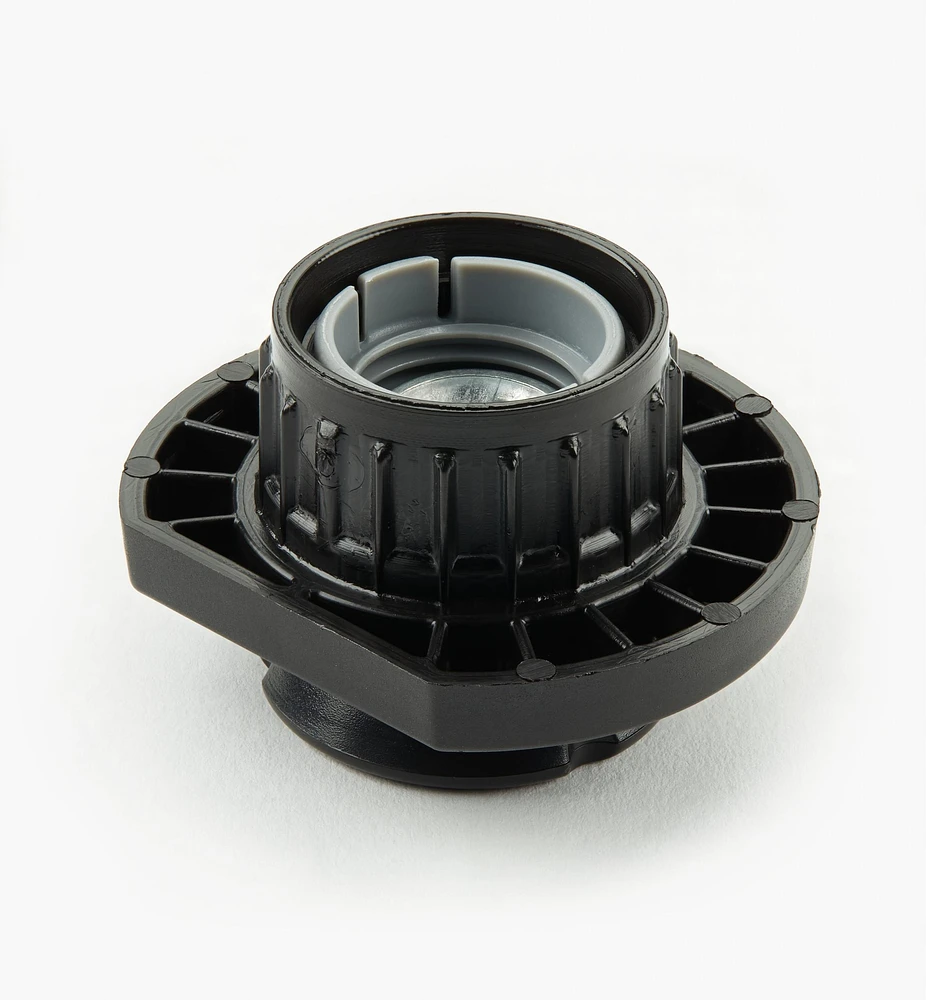

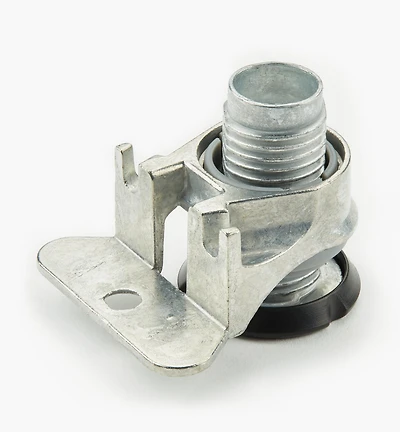

This levelling foot allows easy adjustment for height and level without having to lift the furniture piece to access the levelling mechanism. It installs in a 30mm diameter recess [minimum 3/4" (18mm) material thickness] on the underside of a cabinet carcass.

An 8mm (5/16") through-hole drilled in the bottom panel of the carcass permits convenient access to the adjustment mechanism from above. Height adjustable up to 17mm. The mechanism is driven using a 6mm hex, slot or Phillips screwdriver.

Die-cast zinc alloy, it supports up to 385 lb (175kg) and is capped with an integral glide made of low-friction non-marring plastic. Mounting instructions included.

Made in Italy.
