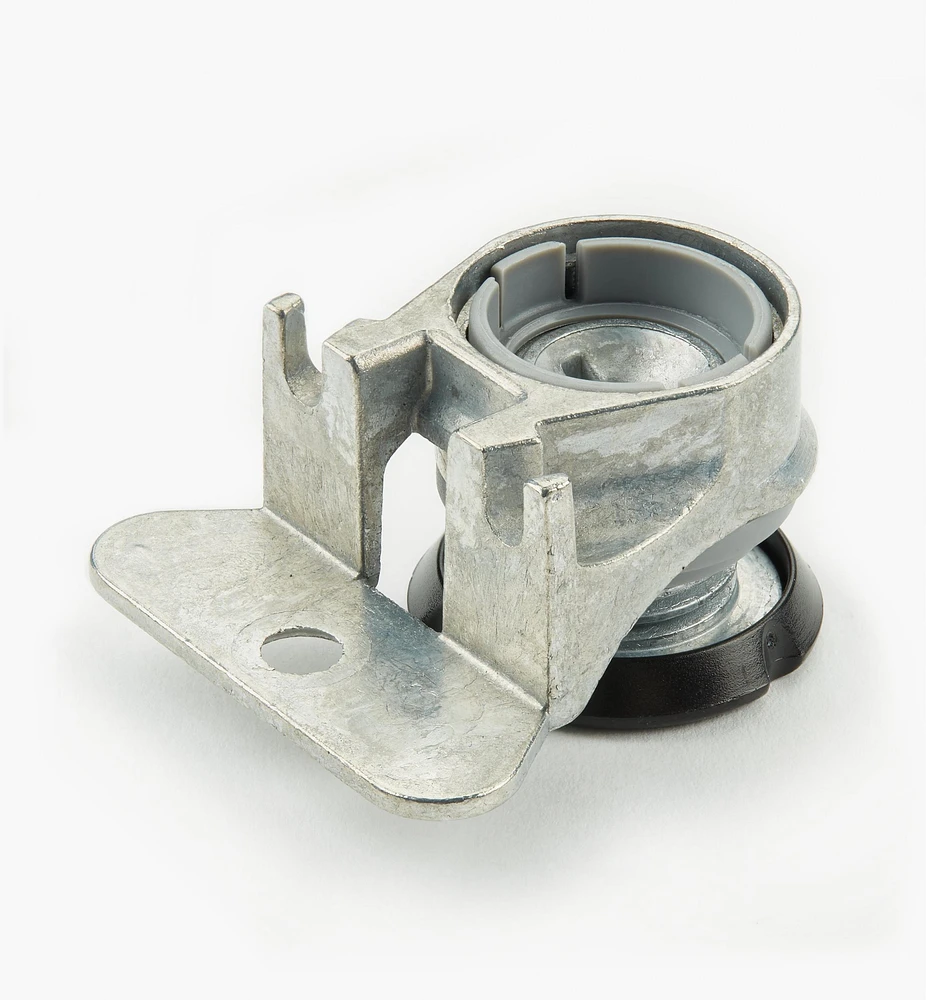

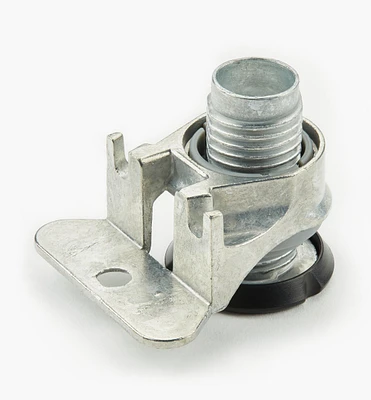

12mm Edge-Mount Top-Adjust Leveller

This levelling foot allows easy adjustment for height and level without having to lift the furniture piece to access the levelling mechanism. It mounts to the inside edge of the side panel and has a 12mm (1/2") adjustment range.

An 8mm (5/16") through-hole drilled in the bottom panel of the carcass permits convenient access to the adjustment mechanism from above. The mechanism is driven using a 6mm hex, slot or Phillips screwdriver.

The leveller secures with three #6 screws, not included [minimum 5/8" (15mm) material thickness].

Die-cast zinc alloy, it supports up to 385 lb (175kg) and is capped with an integral glide made of low-friction non-marring plastic. Mounting instructions included.

Made in Italy.
