110° Overlay Compact Blumotion Hinges

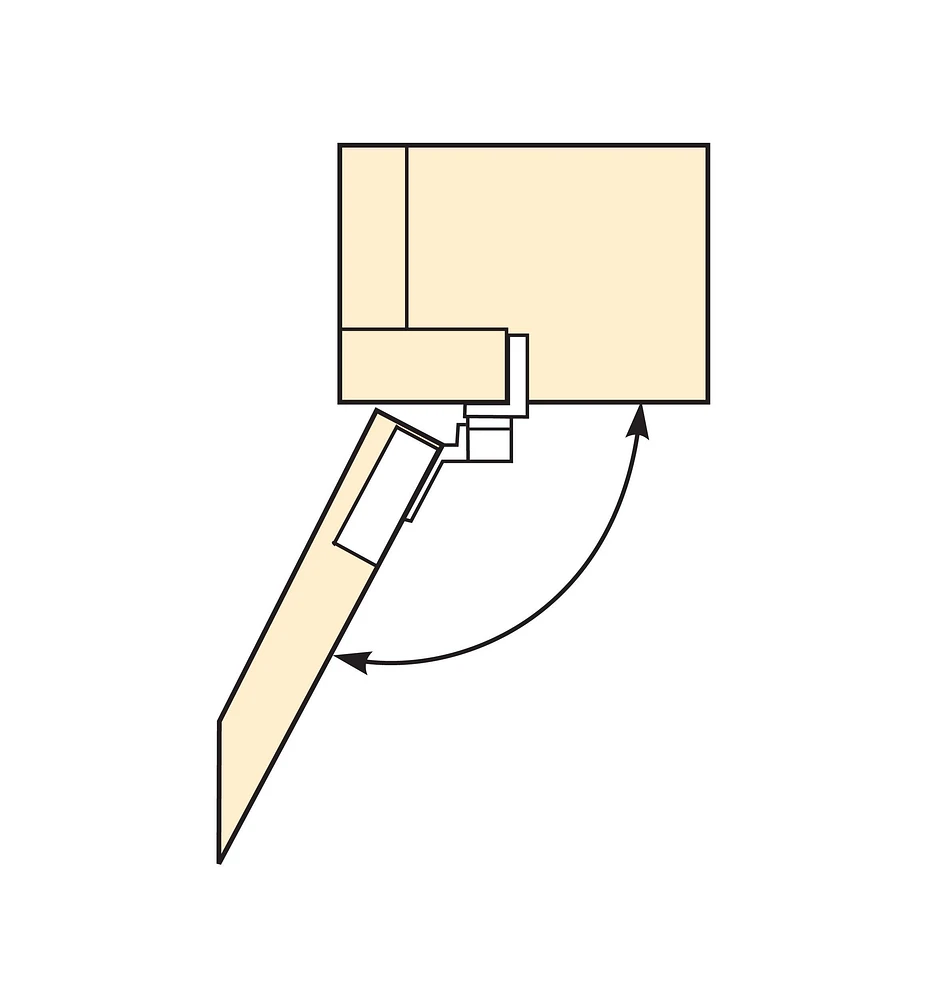

For face-frame cabinetry, these hinges are designed with an integral Blumotion damping mechanism for a smooth, soft-closing motion. They are configured to open 110° for overlay applications, and can be mounted on doors from 16mm to 24mm (5/8" to 15/16") thick.

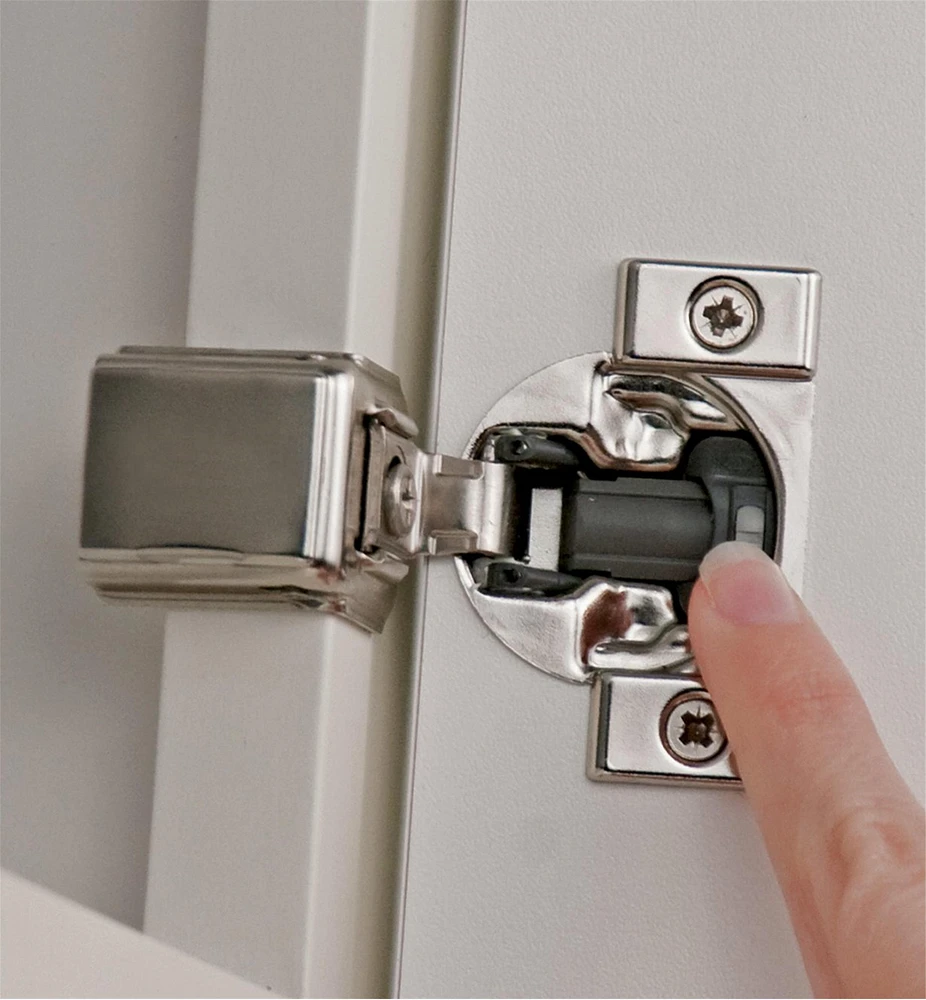

A switch on the hinge cup turns the damping feature on or off. The hinge cup is 35mm (1 3/8") in diameter by 13mm (1/2") deep. For optimal performance, a minimum of two hinges should be installed per door (not mixed with other hinge styles). Adjustable by side, height and depth.

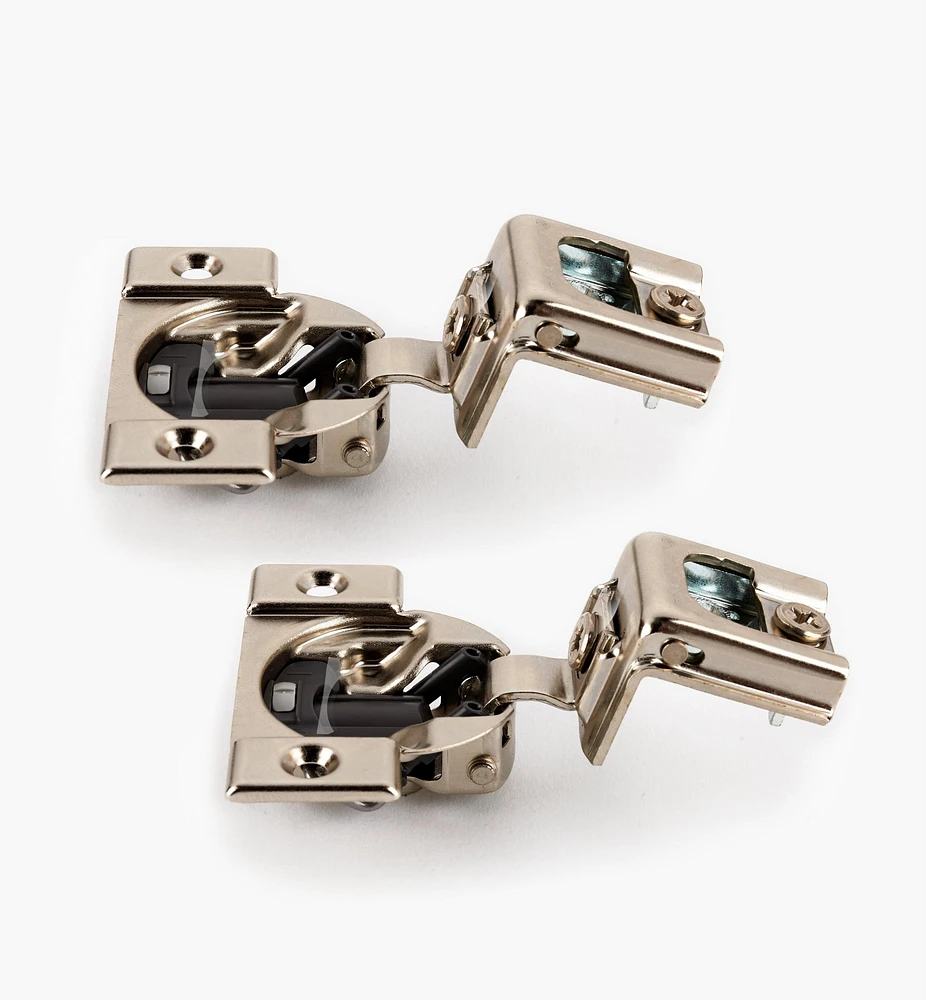

Mounting screws included. Hinges priced per pair. Hinge caps are available separately.
